Bell 47 ES-709 Walkaround Photos
I took this Bell 47 ES-709 walkaround while I was in Greece in mid 2008. It was parked out the front of the Greek War Museum in Athens. There was this Bell 47, a Northrop F-5 Freedom Fighter, a Lockheed F-104 Starfighter, a DogSabre, a Harvard and a Thunderjet. They are all in remarkably good order considering they are kept outside and in unrestricted public access. Inside the museum is a fantastic collection of swords, ancient and recent, and a collection of body armour. There is a collection of artillery on display outside as well. Overall well worth a visit if you are in Athens.
 |  |  | Bell 47 ES-709 Pic 1

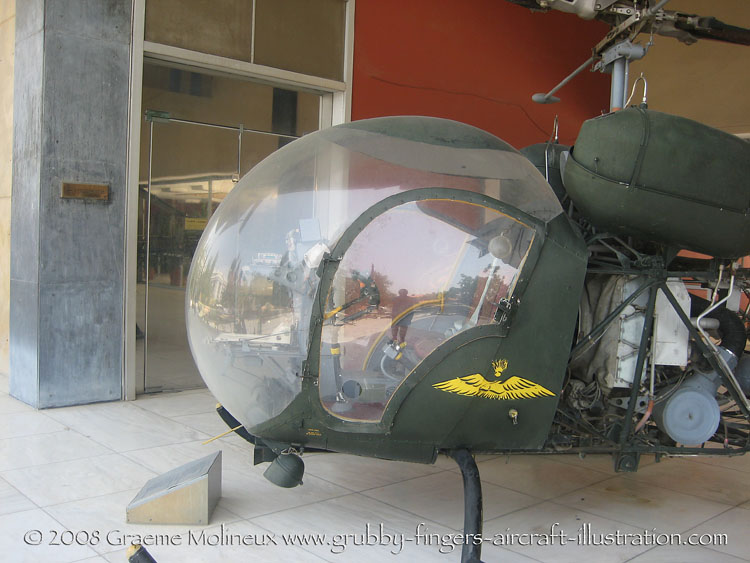

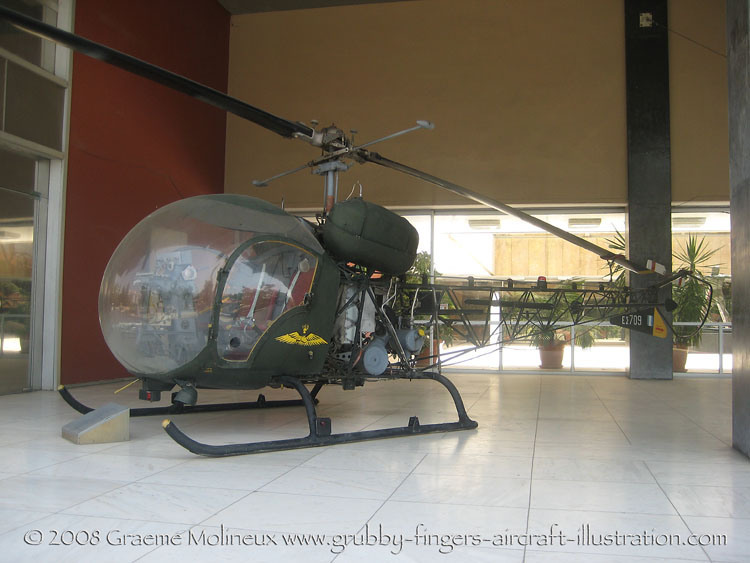

This Bell 47 lives under theeaves of the Greek War Museum in Athens | Bell 47 ES-709 Pic 2
Port side of cabin | Bell 47 ES-709 Pic 3

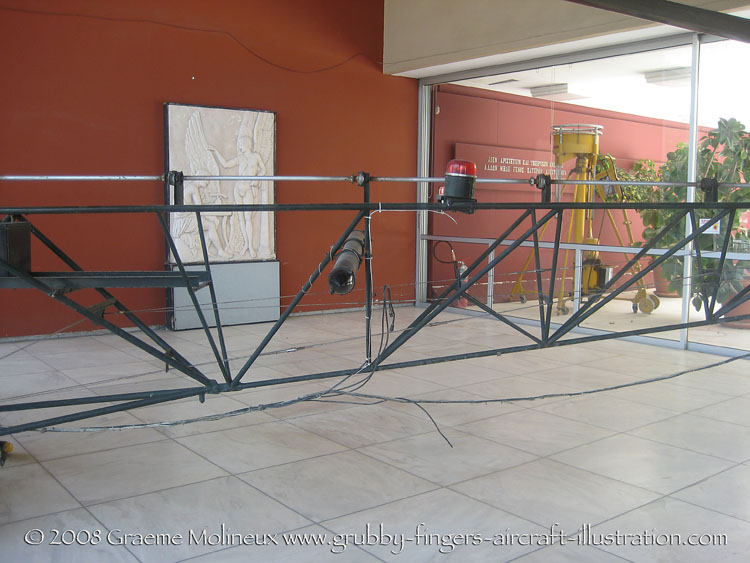

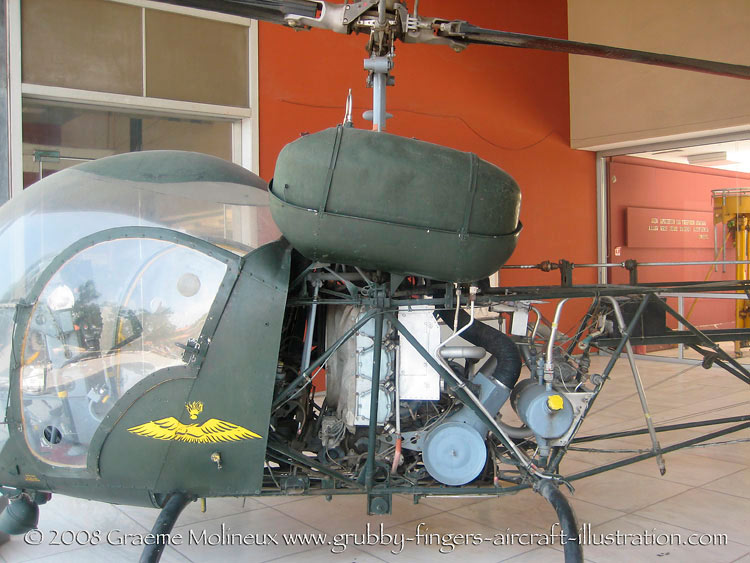

Port side of engine area |
 |  |  | Bell 47 ES-709 Pic 4

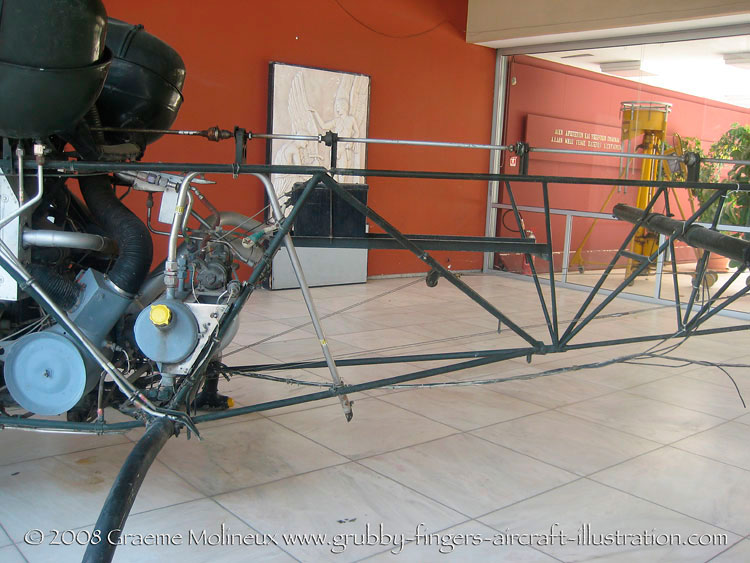

Port view of base of tail boom | Bell 47 ES-709 Pic 5
Port tail boom mid section | Bell 47 ES-709 Pic 6

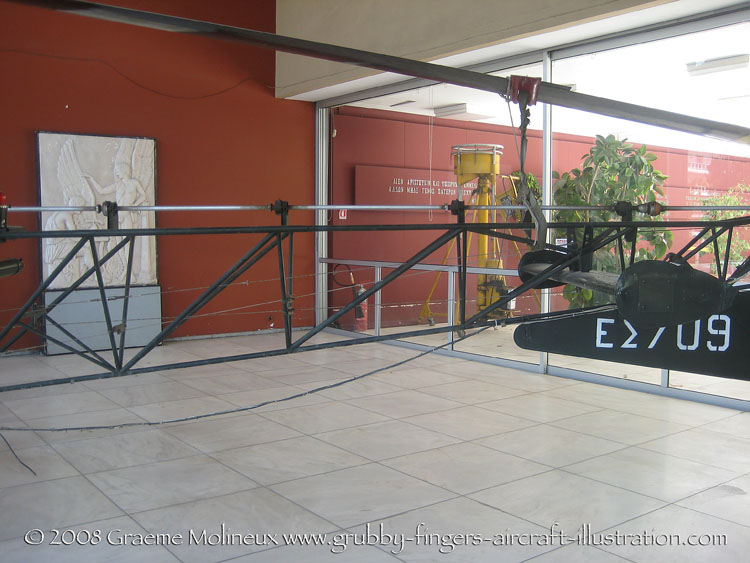

Tail boom toward tail rotor |

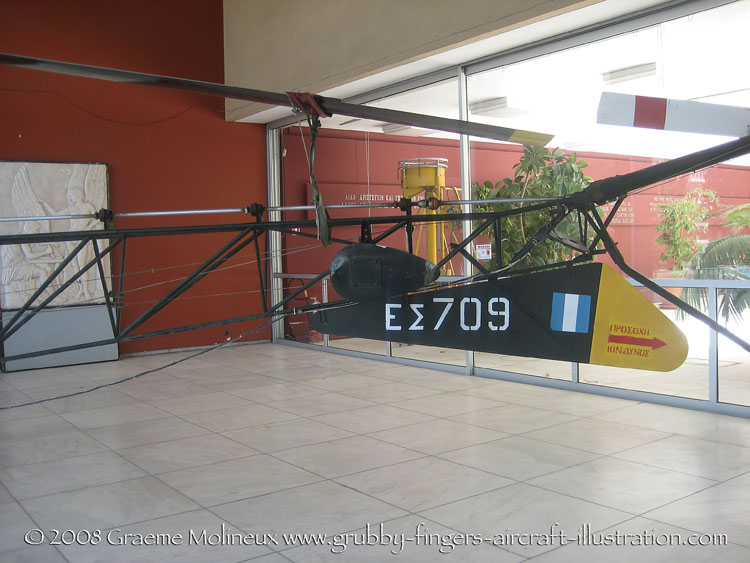

 |  |  | Bell 47 ES-709 Pic 7

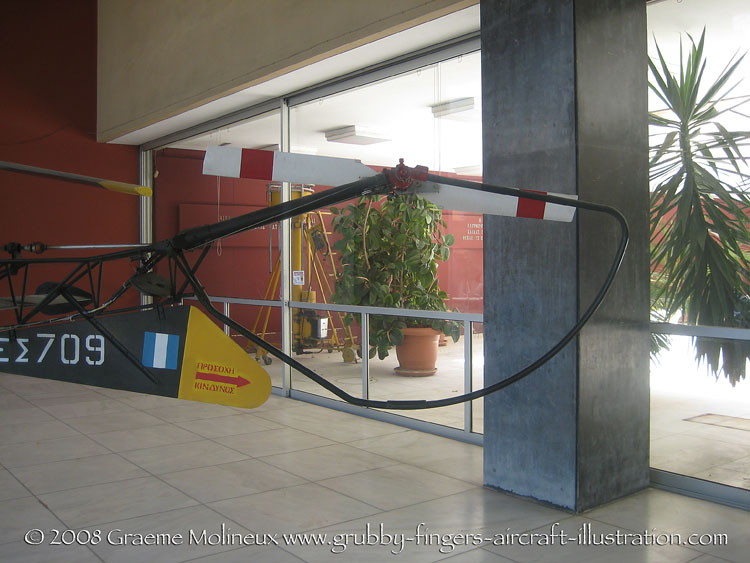

Tailplane and dorsal fin | Bell 47 ES-709 Pic 8
Tail rotor from port side | Bell 47 ES-709 Pic 9

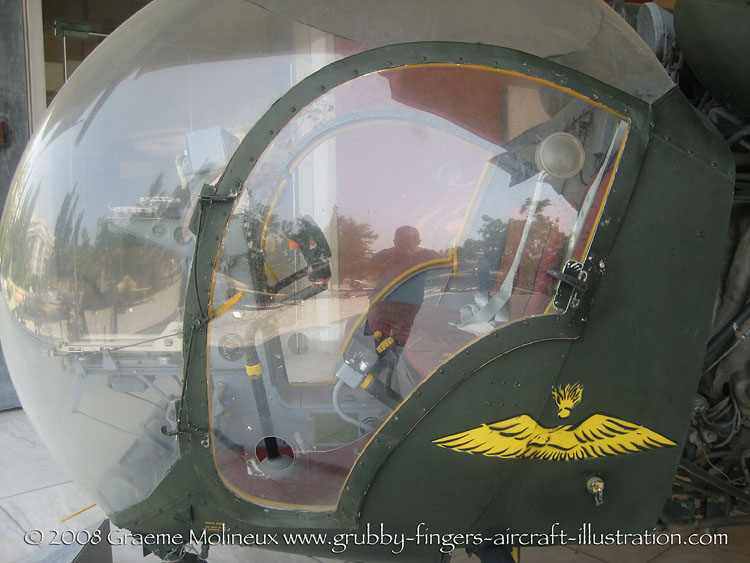

Port side cockpit door |
 |  |  | Bell 47 ES-709 Pic 10

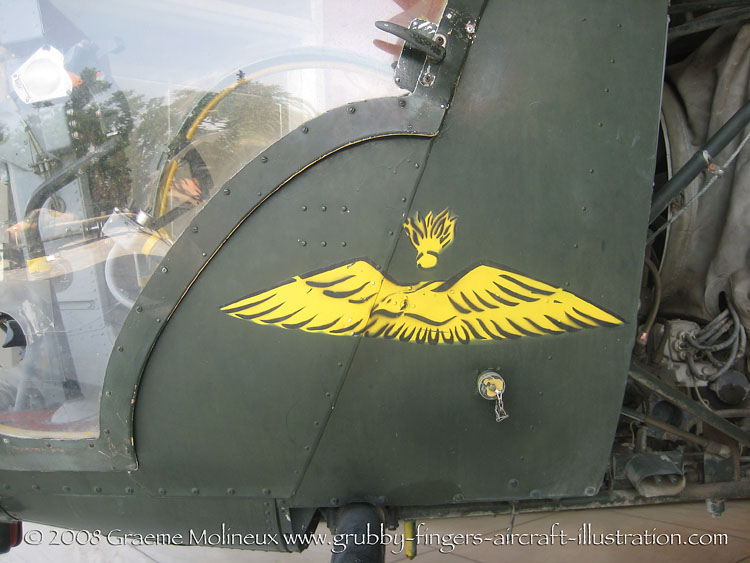

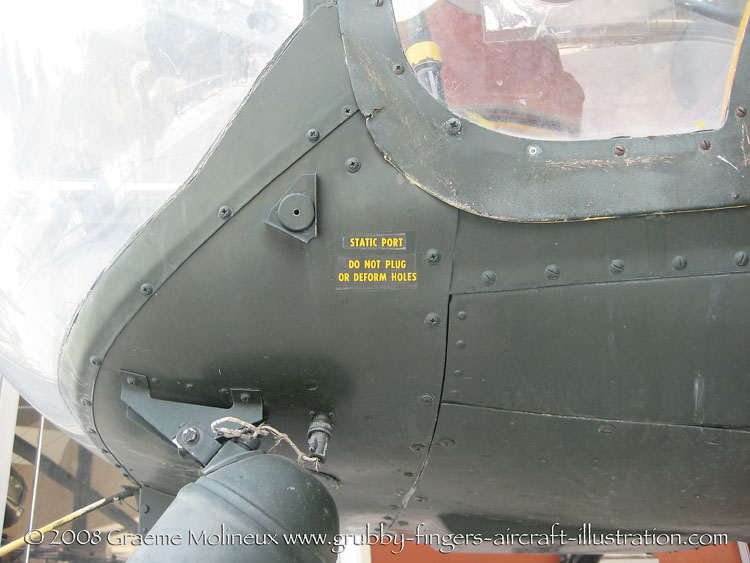

Logo detail on port side | Bell 47 ES-709 Pic 11

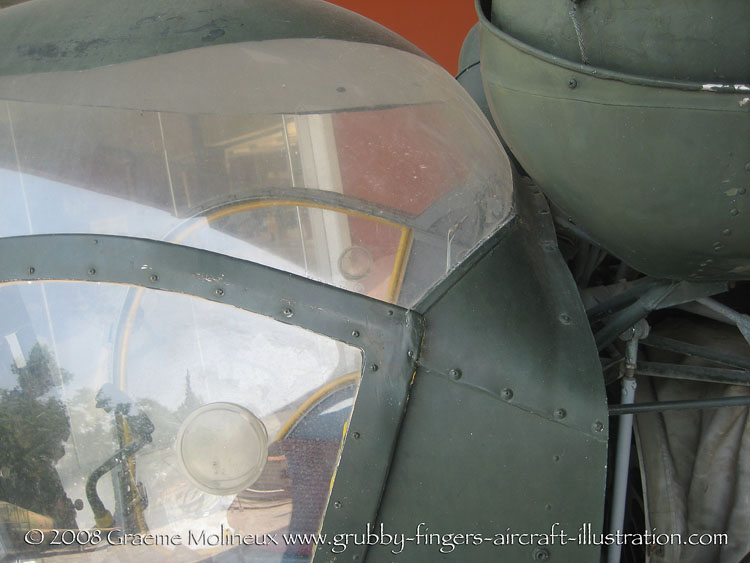

Detail of upper port cabin | Bell 47 ES-709 Pic 12
Landing light under nose |
 |  |  | Bell 47 ES-709 Pic 13

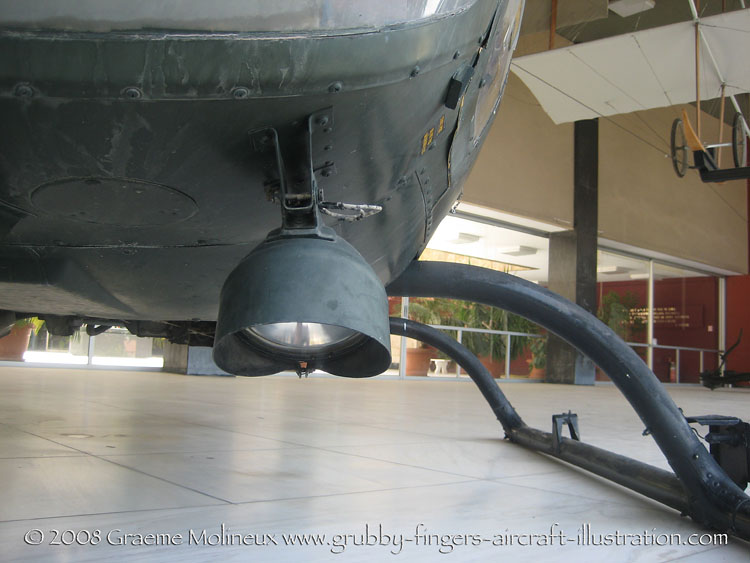

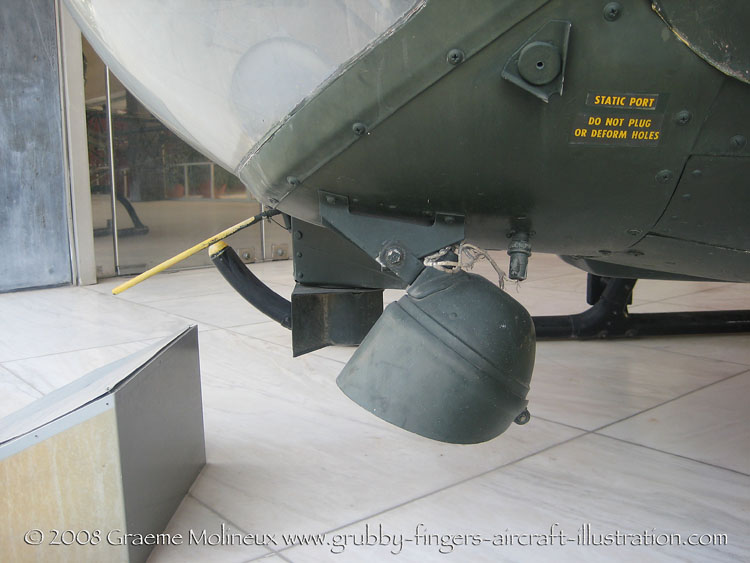

Landing light under nose | Bell 47 ES-709 Pic 14

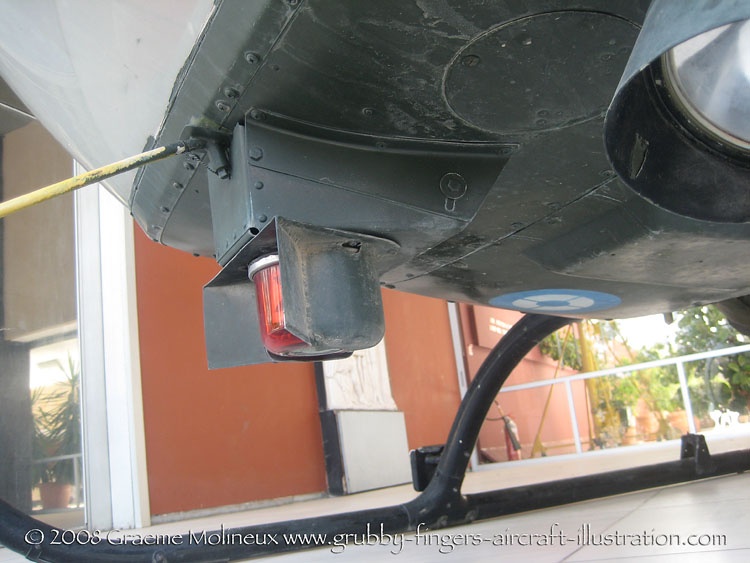

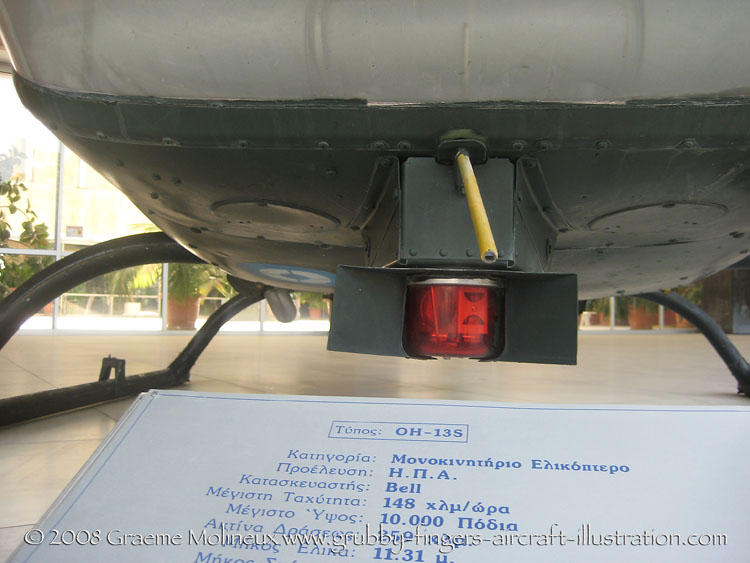

Navlight under nose | Bell 47 ES-709 Pic 15
Navlight under nose |
 |  |  | Bell 47 ES-709 Pic 16
Cabin underside detail | Bell 47 ES-709 Pic 17

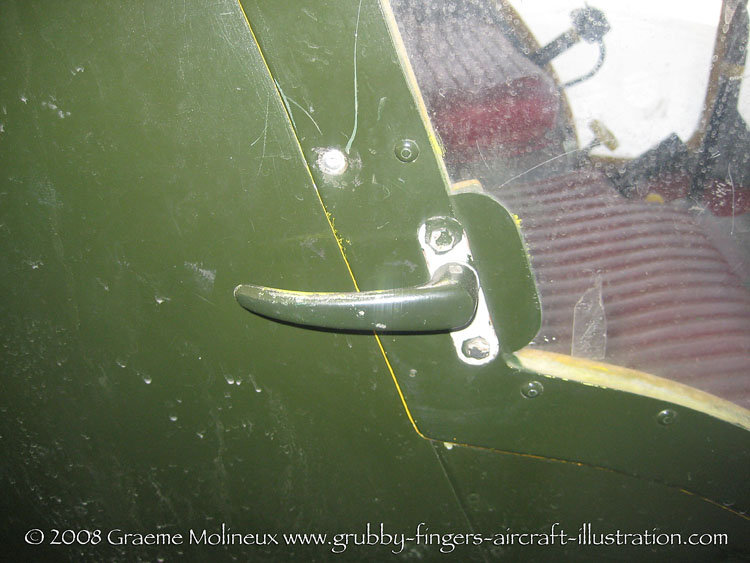

Cabin door handle | Bell 47 ES-709 Pic 18

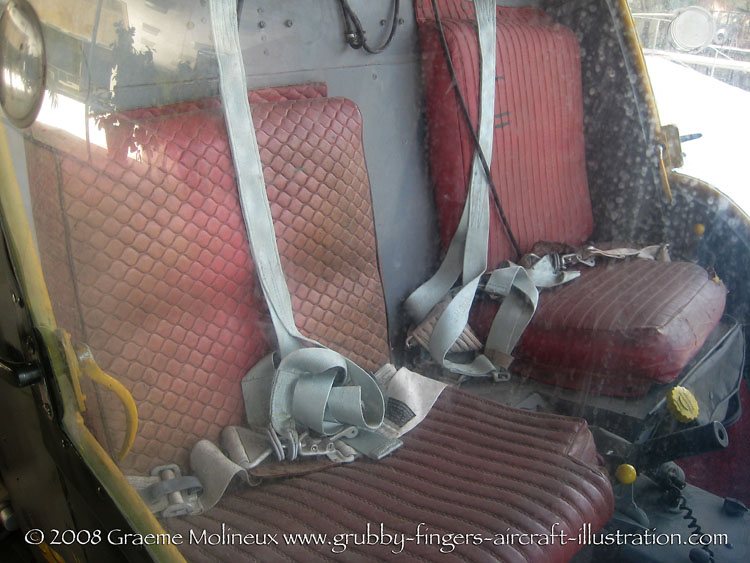

View of cabin interior |
 |  |  | Bell 47 ES-709 Pic 19

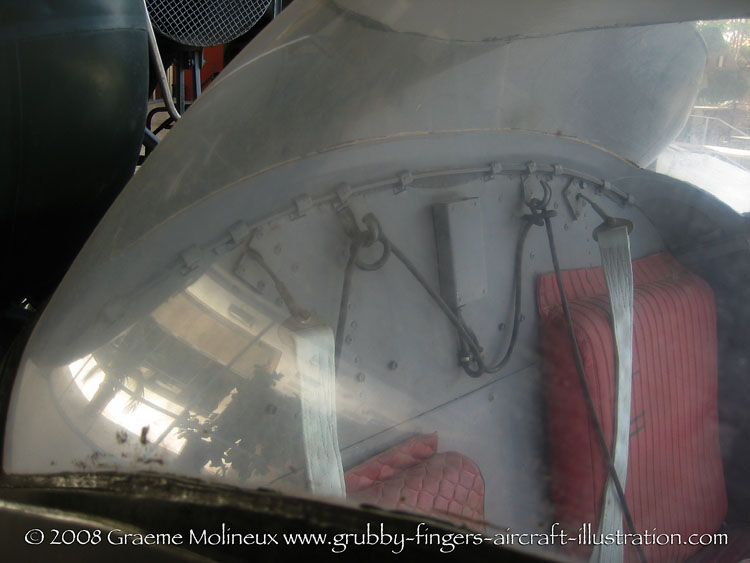

Interior cabin rear wall | Bell 47 ES-709 Pic 20

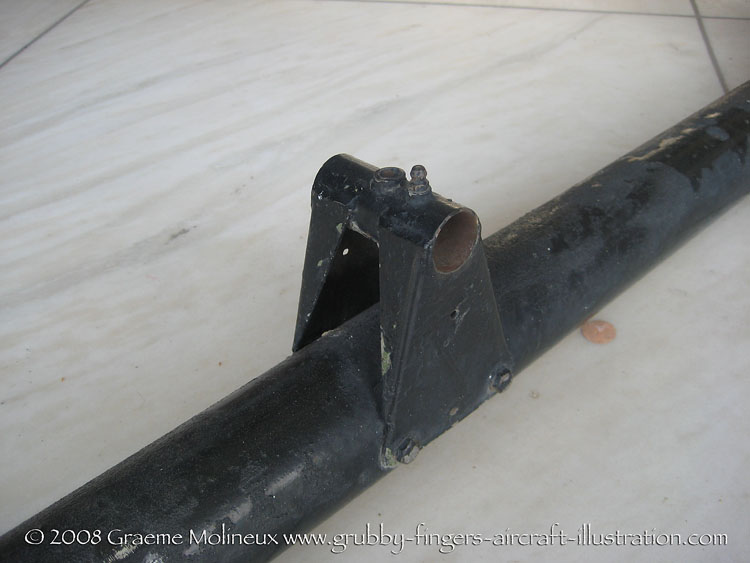

Mount for ground handling wheel on skids | Bell 47 ES-709 Pic 21

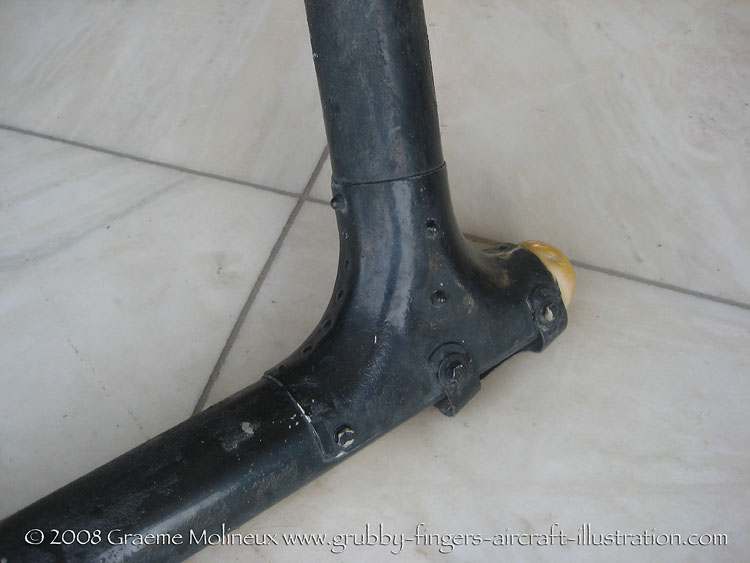

Rear skid mount |
 |  |  | Bell 47 ES-709 Pic 22

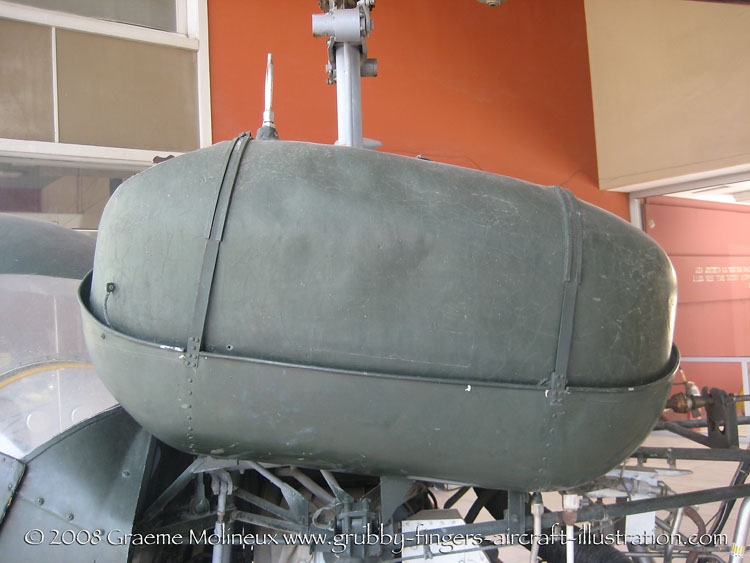

Port fuel tank | Bell 47 ES-709 Pic 23

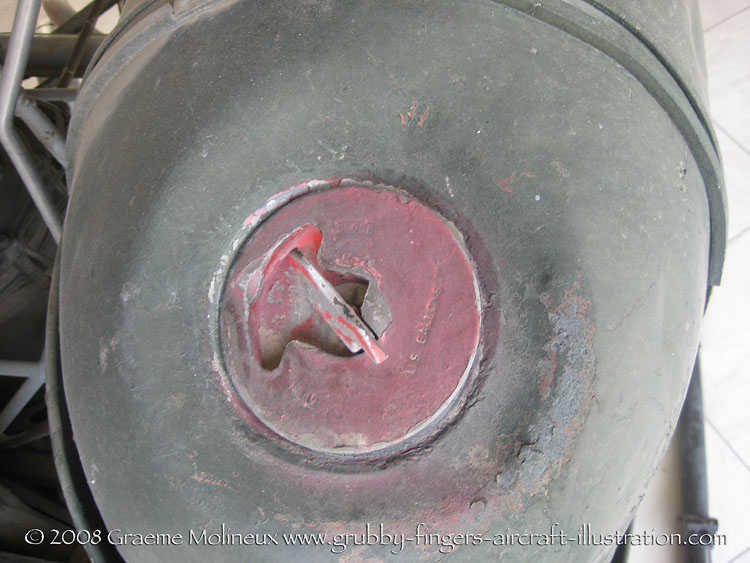

Fuel tank filler | Bell 47 ES-709 Pic 24

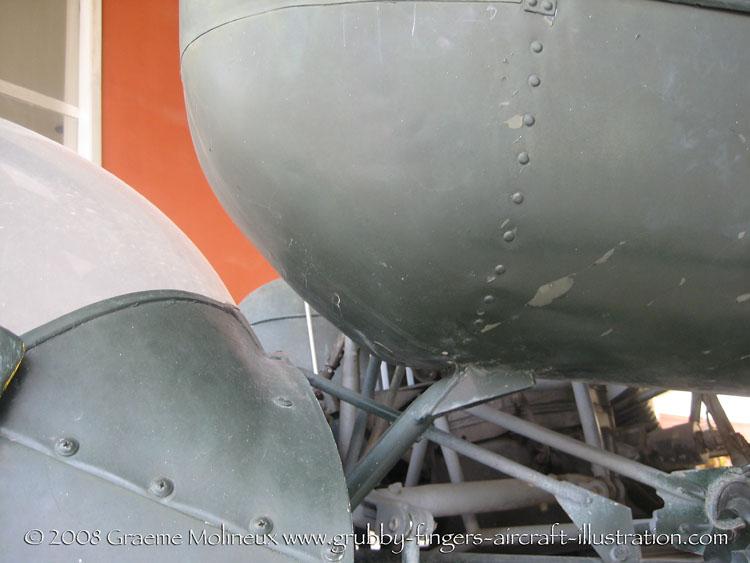

Looking in under port fuel tank |
 |  |  | Bell 47 ES-709 Pic 25

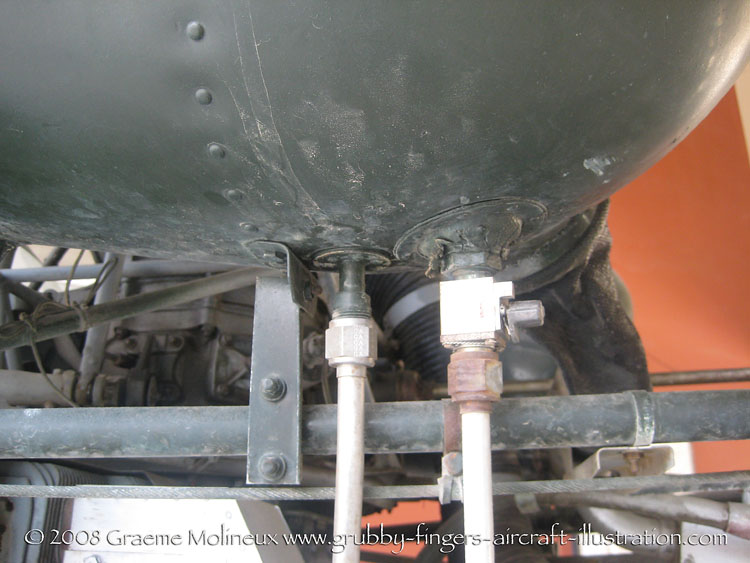

Fuel tap and plumbing | Bell 47 ES-709 Pic 26

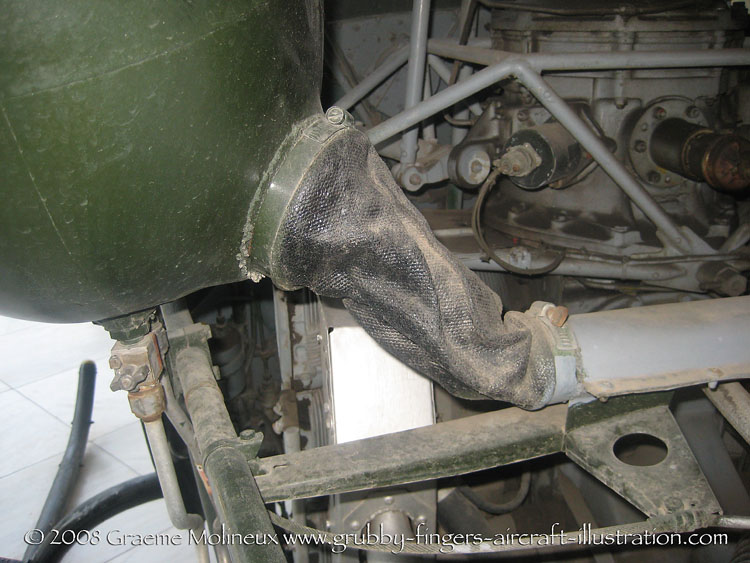

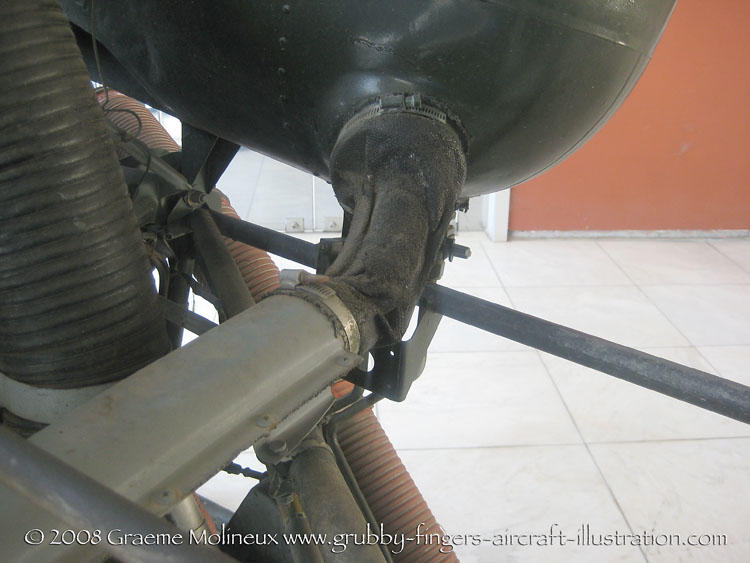

Fuel tank breather or spill drain? | Bell 47 ES-709 Pic 27
Fuel tank breather or spill drain? |
 |  |  | Bell 47 ES-709 Pic 28

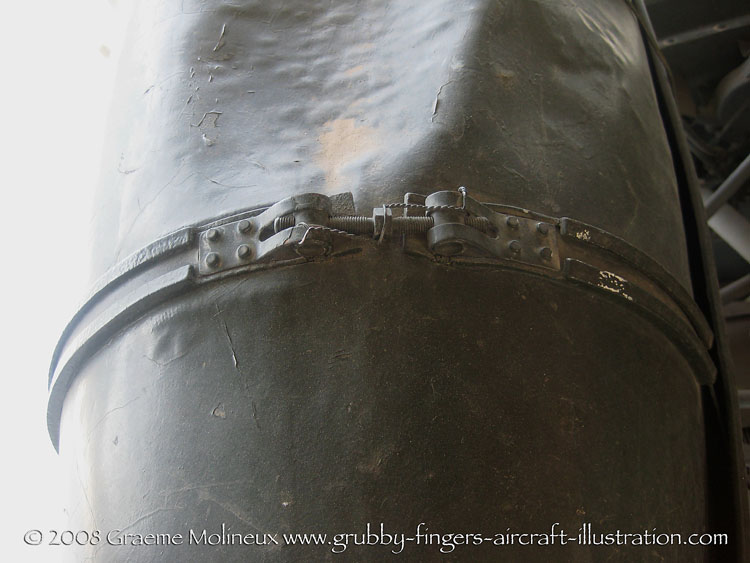

Fuel tank attachment strap | Bell 47 ES-709 Pic 29

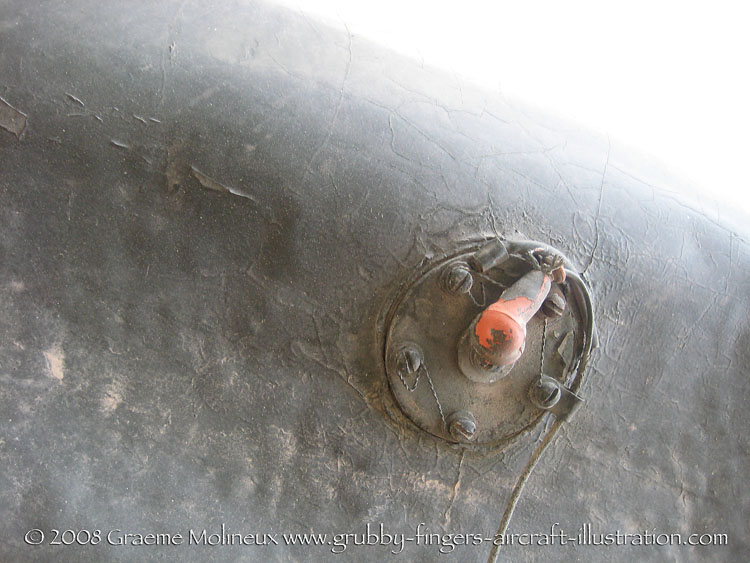

Fuel tank level sender | Bell 47 ES-709 Pic 30

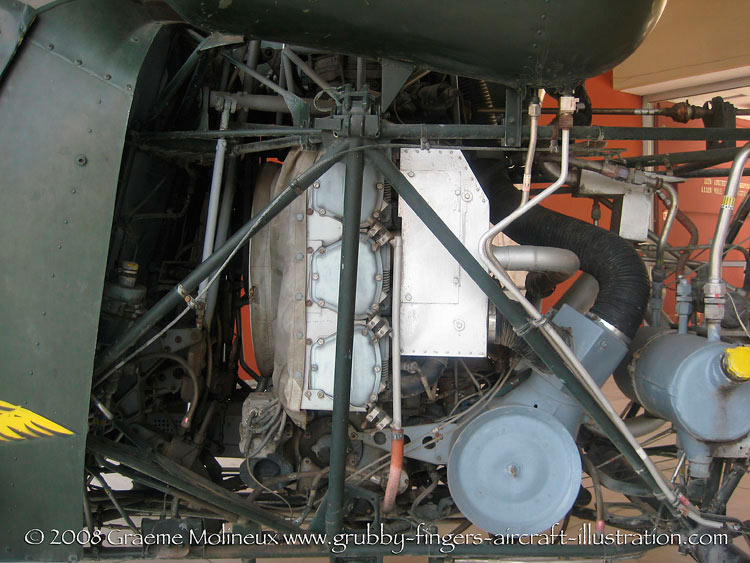

Engine bay from port |
 |  |  | Bell 47 ES-709 Pic 31

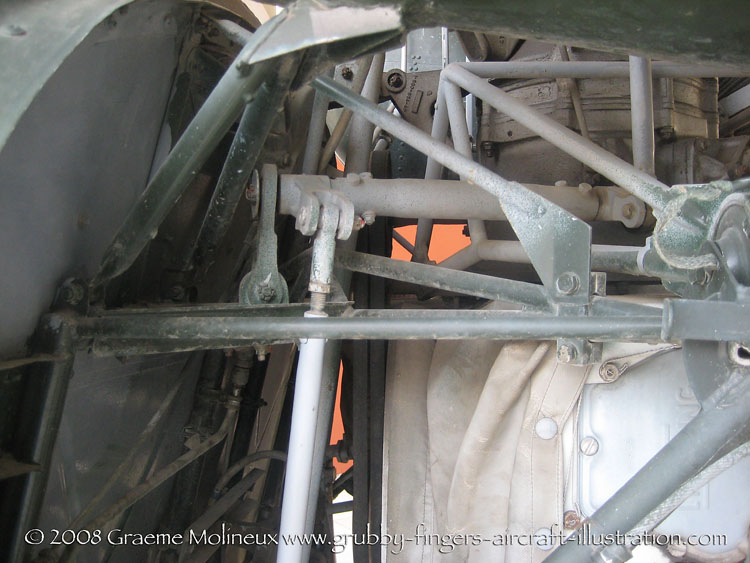

Engine bay below port fuel tank | Bell 47 ES-709 Pic 32

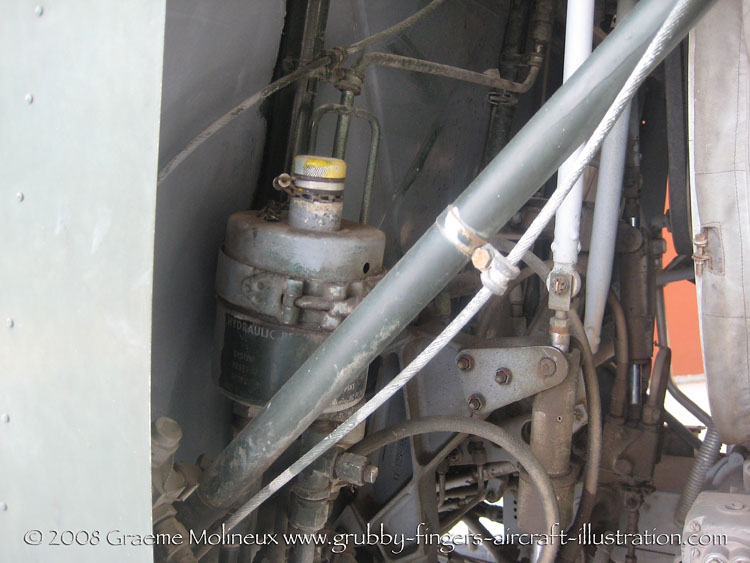

Hydraulic reservior on back of cabin firewall | Bell 47 ES-709 Pic 33

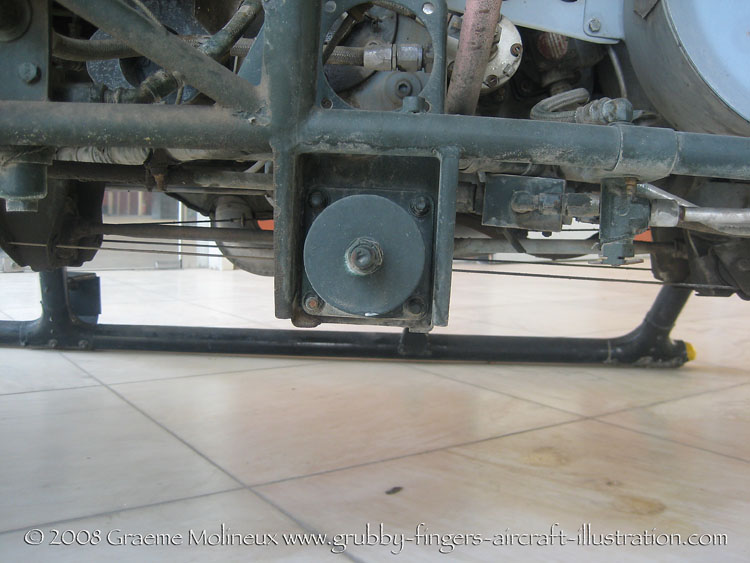

Engine frame mount under main frame |
 |  |  | Bell 47 ES-709 Pic 34

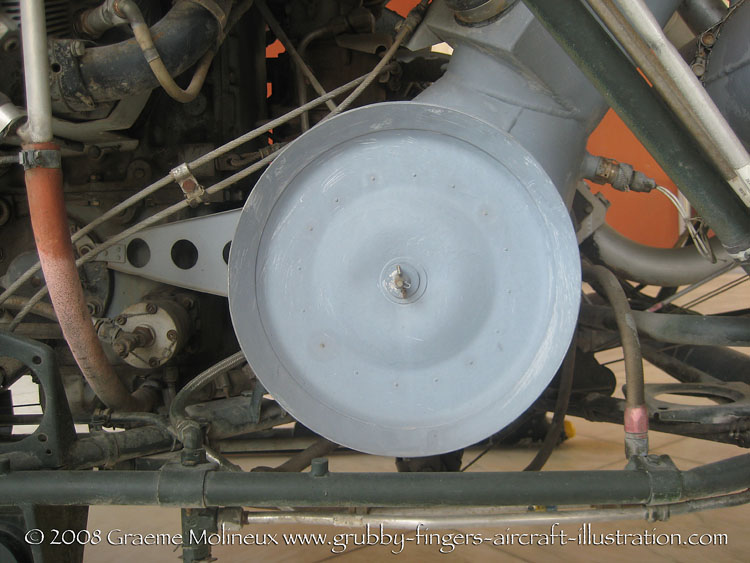

Air filter cover (possibly) | Bell 47 ES-709 Pic 35

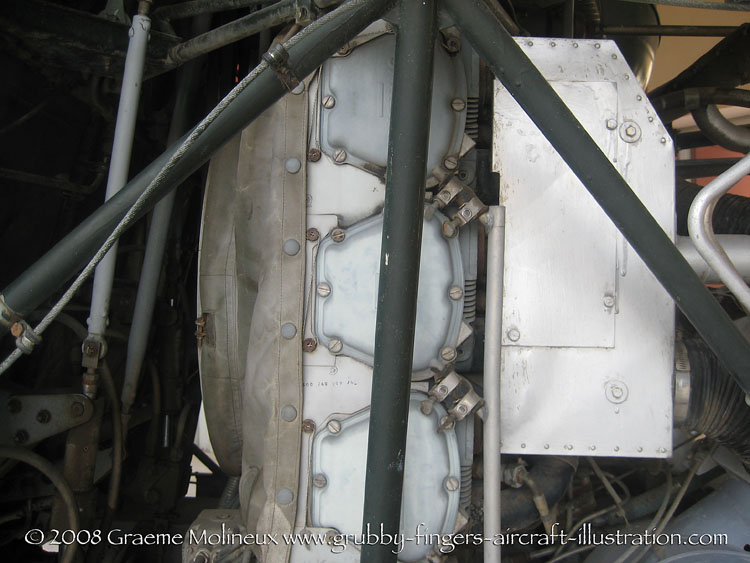

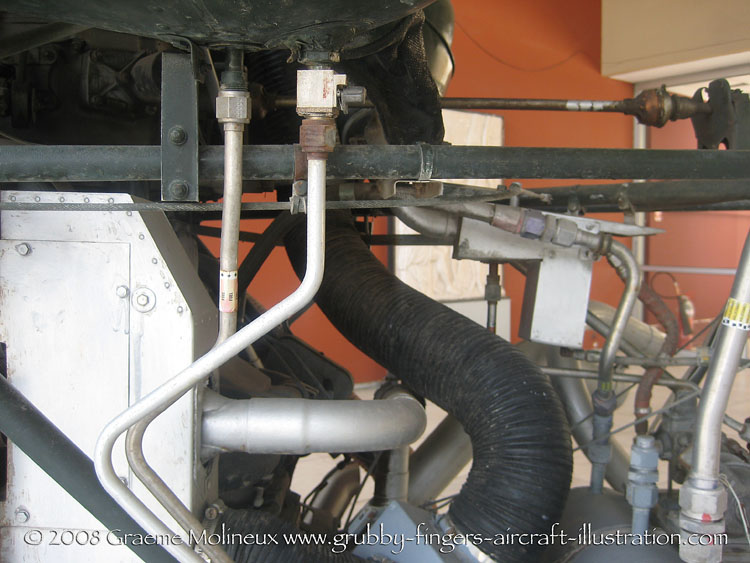

Port side cylinder heads | Bell 47 ES-709 Pic 36
Above and behind engine port side |
 |  |  | Bell 47 ES-709 Pic 37

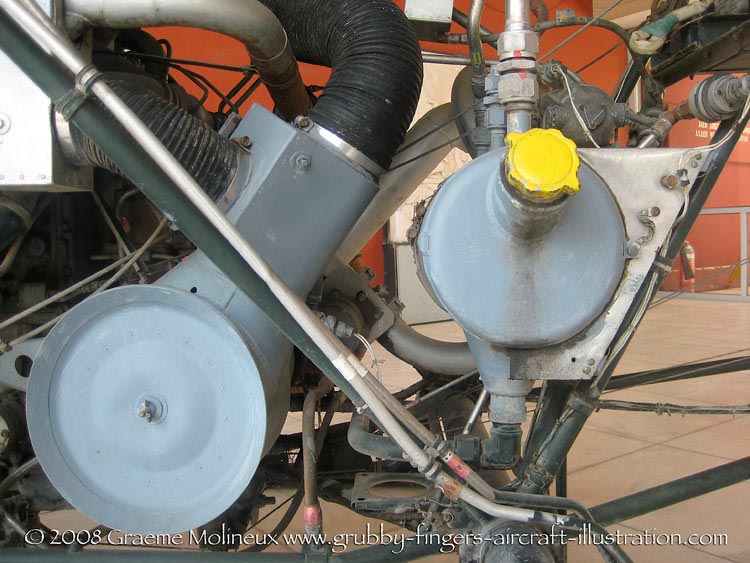

Below and behind engine port side | Bell 47 ES-709 Pic 38

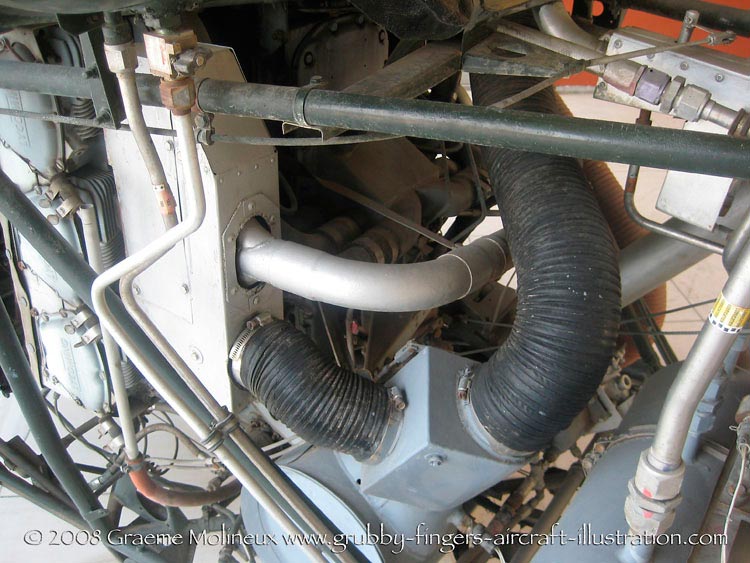

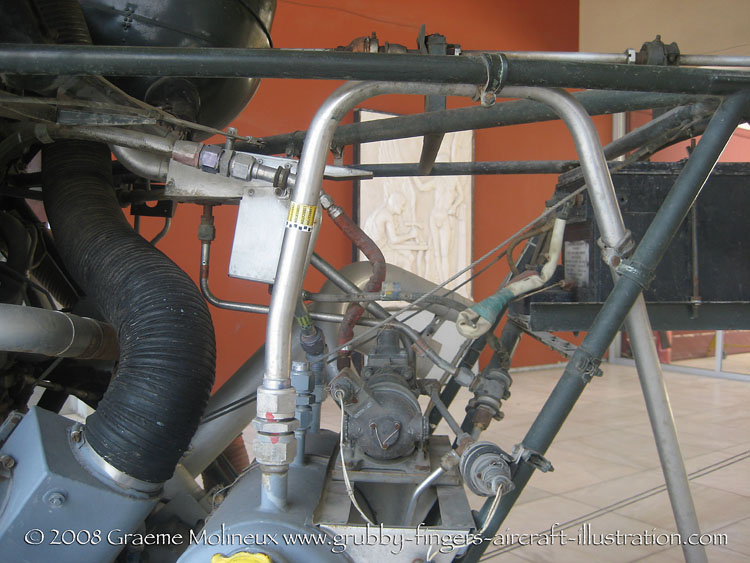

Behind engine port side | Bell 47 ES-709 Pic 39
Looking in behind the engine from upper port side |
 |  |  | Bell 47 ES-709 Pic 40

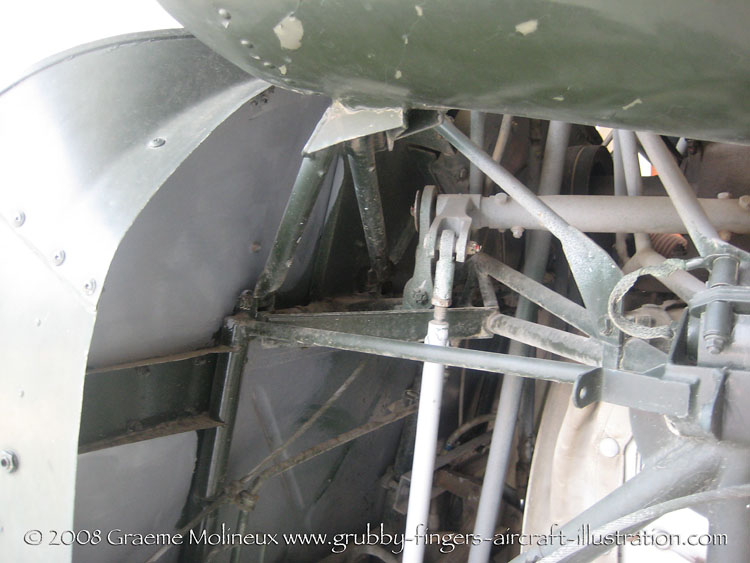

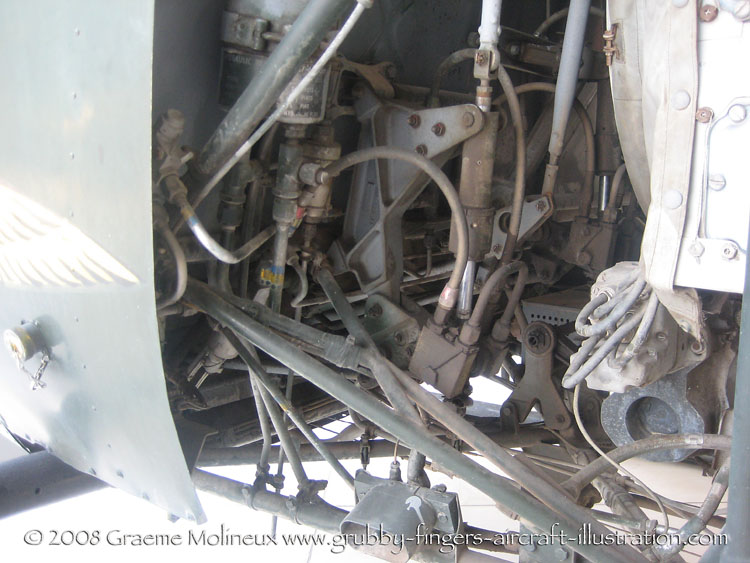

Rear of cabin firewall from port side | Bell 47 ES-709 Pic 41
Upper rear of cabin firewall from port | Bell 47 ES-709 Pic 42

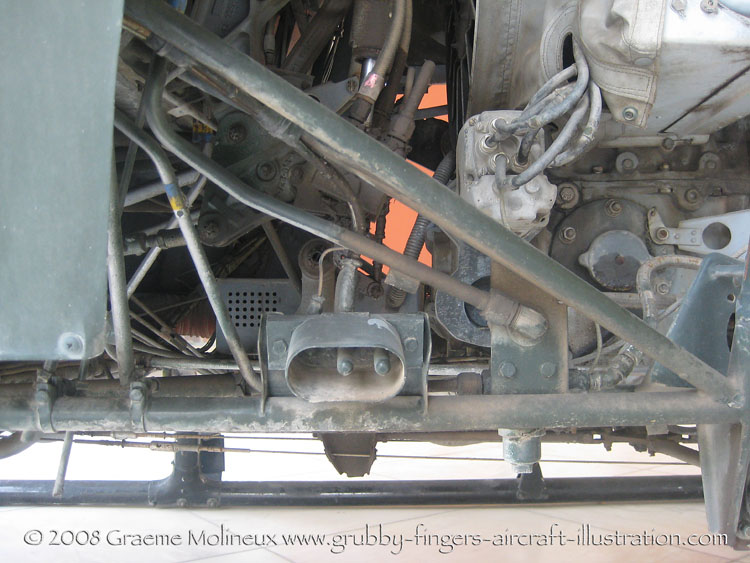

Detail behind port side of cabin |
 |  |  | Bell 47 ES-709 Pic 43

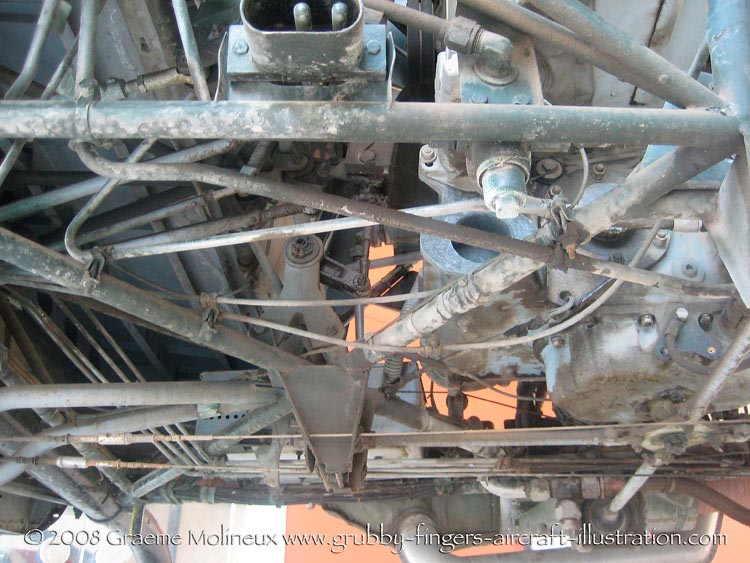

Looking up underneath from port side | Bell 47 ES-709 Pic 44

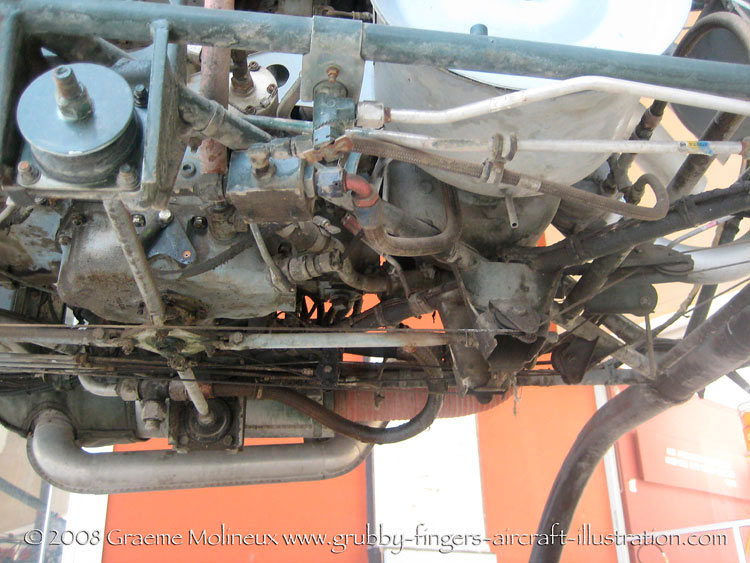

Looking up at engine mounting frame from port side | Bell 47 ES-709 Pic 45

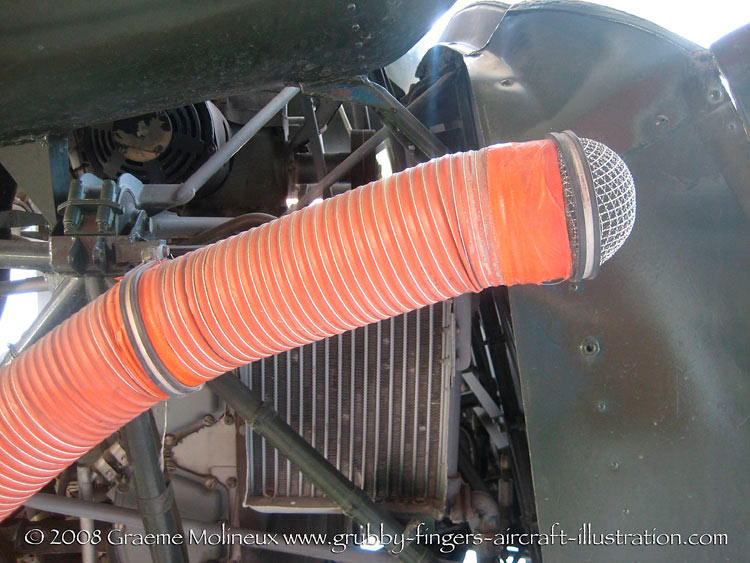

Air intake ducting |
 |  |  | Bell 47 ES-709 Pic 46

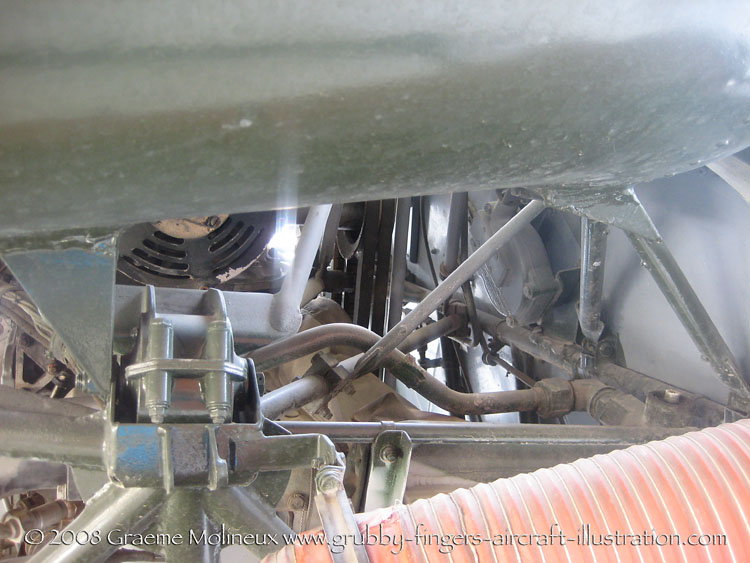

Looking in at top of engine bay from under stbd fuel tank | Bell 47 ES-709 Pic 47

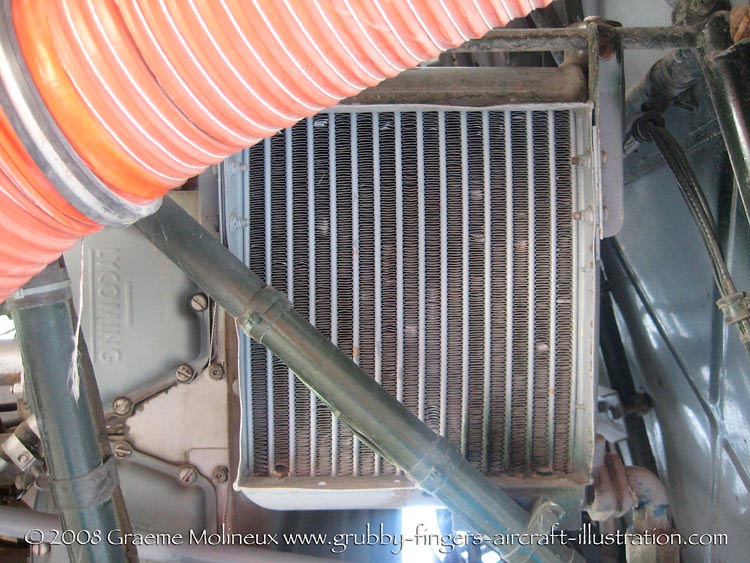

Turbo intercooler on stbd side | Bell 47 ES-709 Pic 48

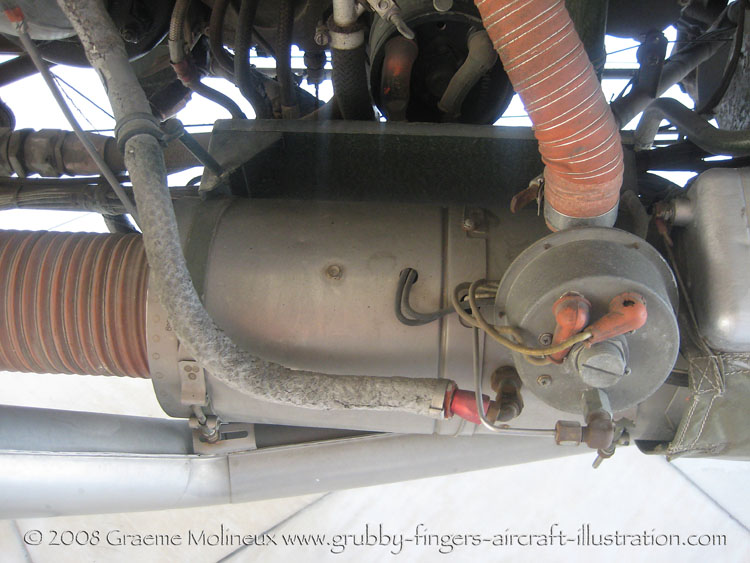

Intake filter low on stbd side |
 |  |  | Bell 47 ES-709 Pic 49

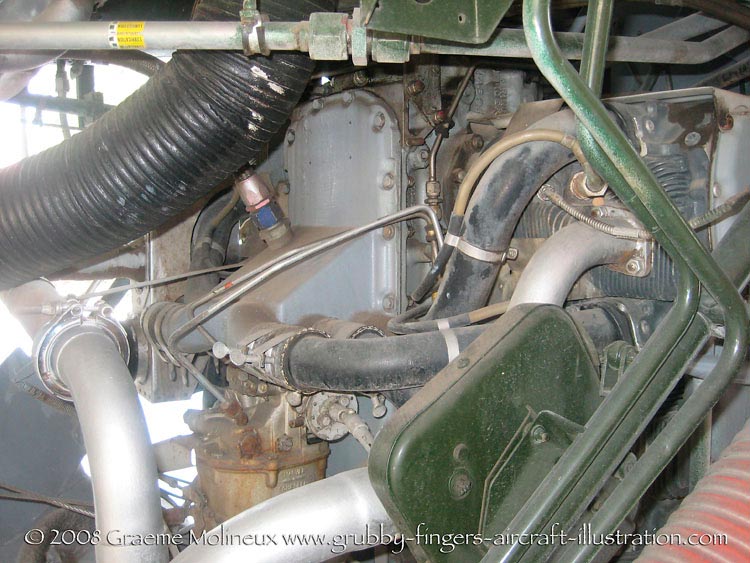

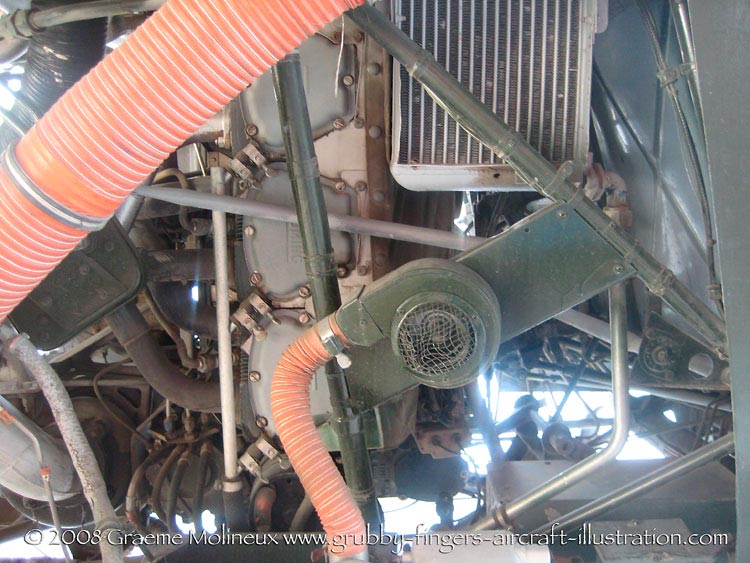

Engine bay detail from stbd side | Bell 47 ES-709 Pic 50

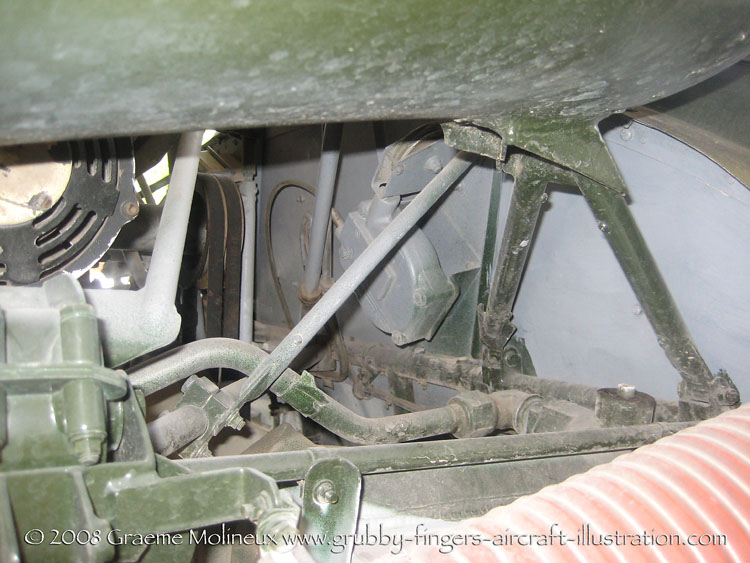

Looking in at top rear of engine from stbd side | Bell 47 ES-709 Pic 51
Top of firewall from under stbd fuel tank |
 |  |  | Bell 47 ES-709 Pic 52

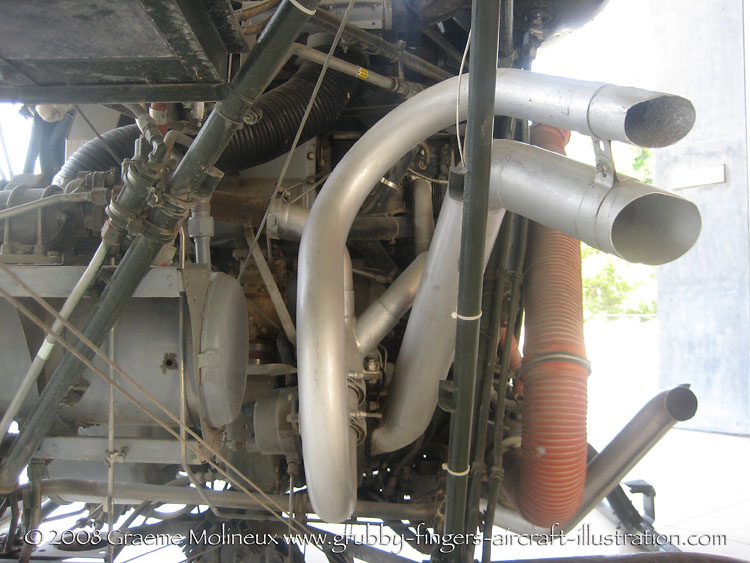

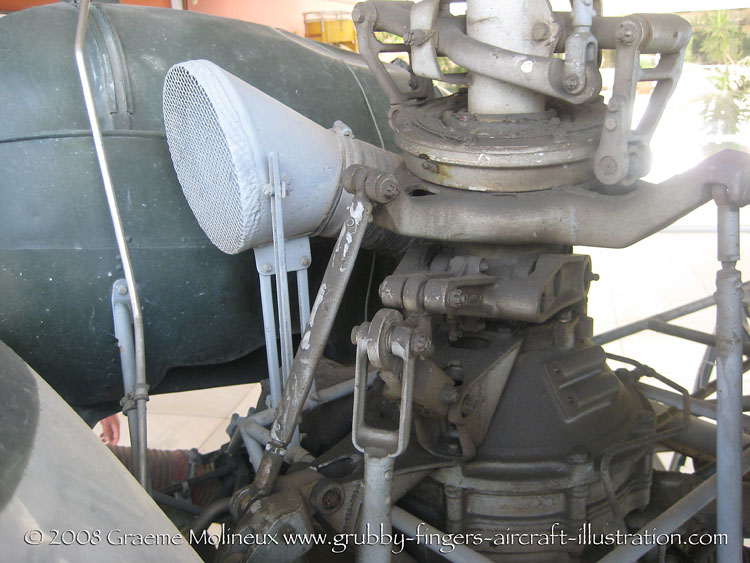

Exhaust detail | Bell 47 ES-709 Pic 53

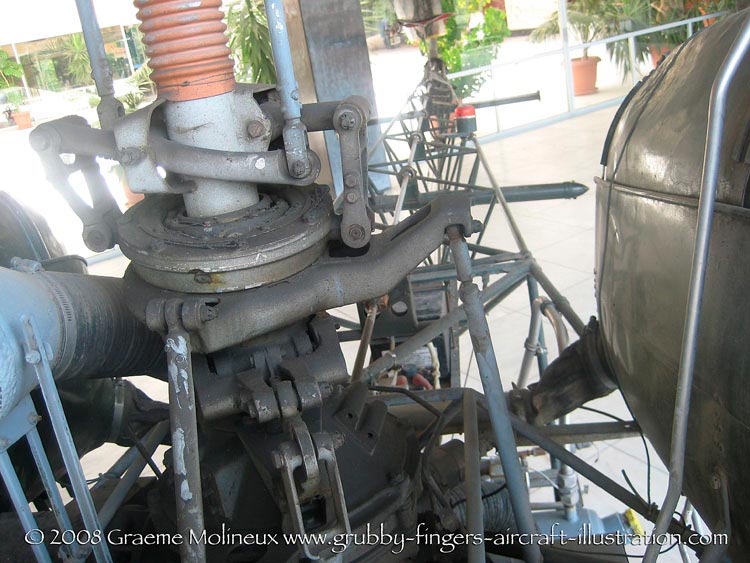

Gearbox and linkages seen from above front of port fuel tank | Bell 47 ES-709 Pic 54
Gearbox and linkages seen from above between fuel tanks |
 |  |  | Bell 47 ES-709 Pic 55

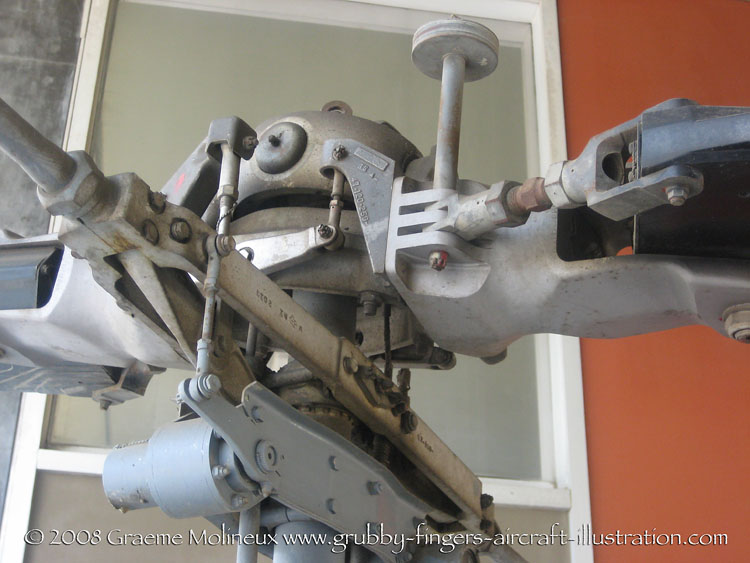

Rotor head | Bell 47 ES-709 Pic 56

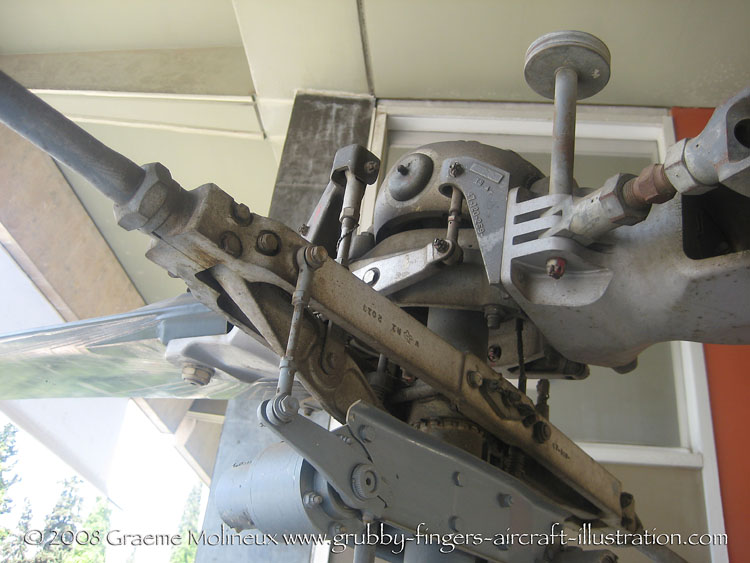

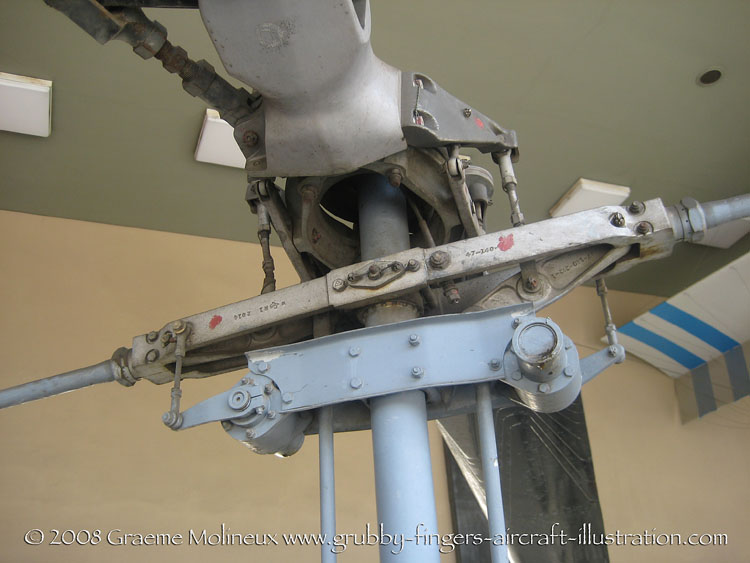

Rotor head | Bell 47 ES-709 Pic 57
Rotor head |
 |  |  | Bell 47 ES-709 Pic 58

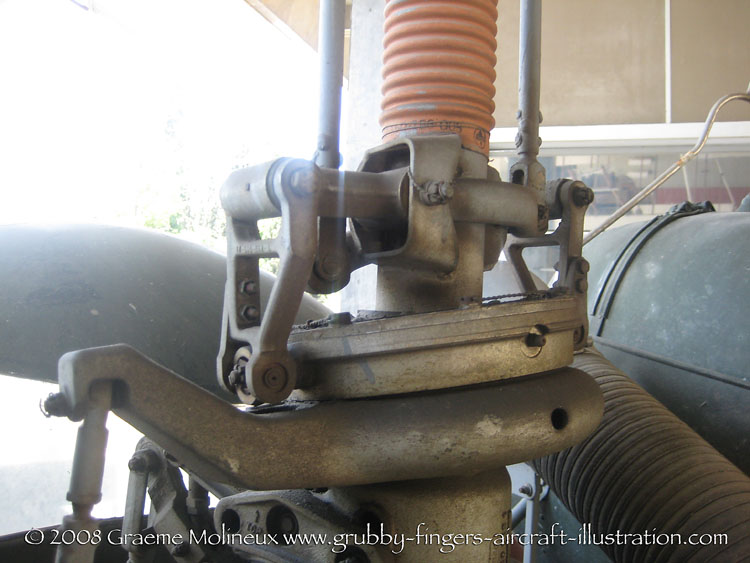

Swash plate and control rods from rear | Bell 47 ES-709 Pic 59

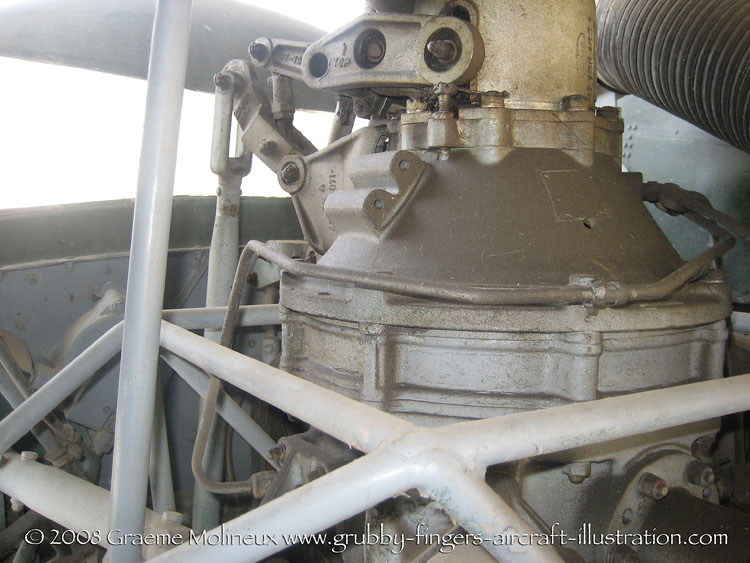

Main gearbox from rear | Bell 47 ES-709 Pic 60
Battery box and upper boom connection |
 |  |  | Bell 47 ES-709 Pic 61

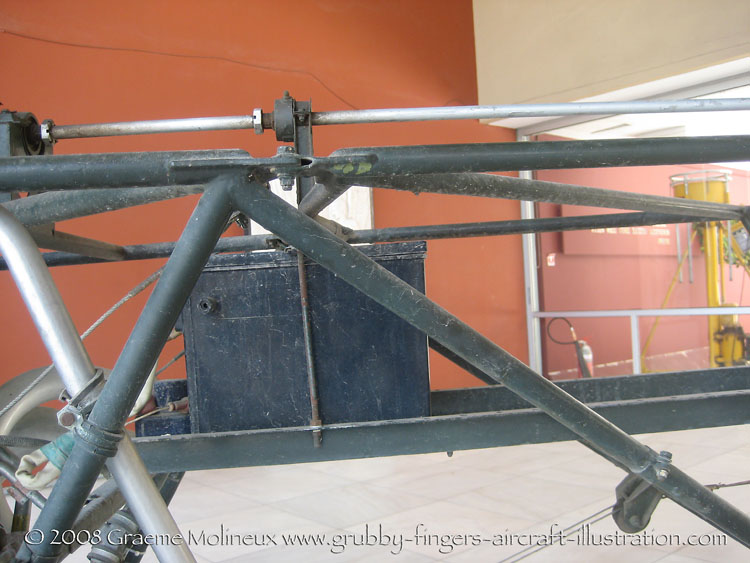

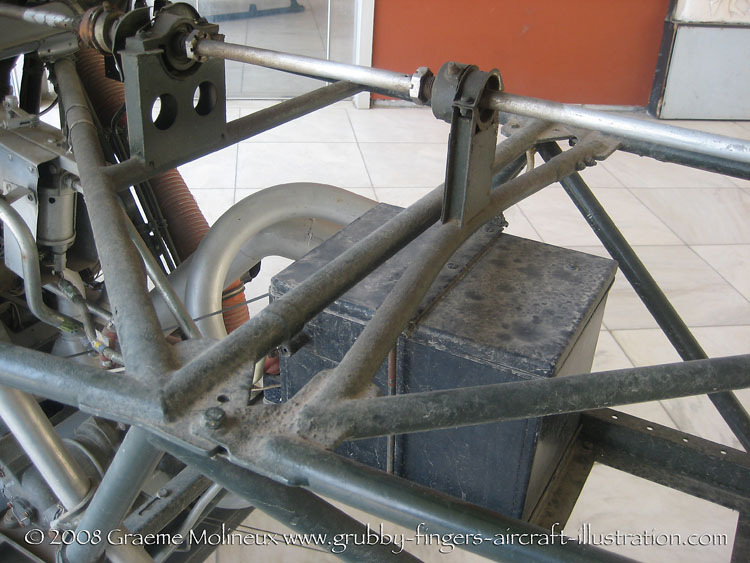

Battery box | Bell 47 ES-709 Pic 62
I don't know what this is | Bell 47 ES-709 Pic 63

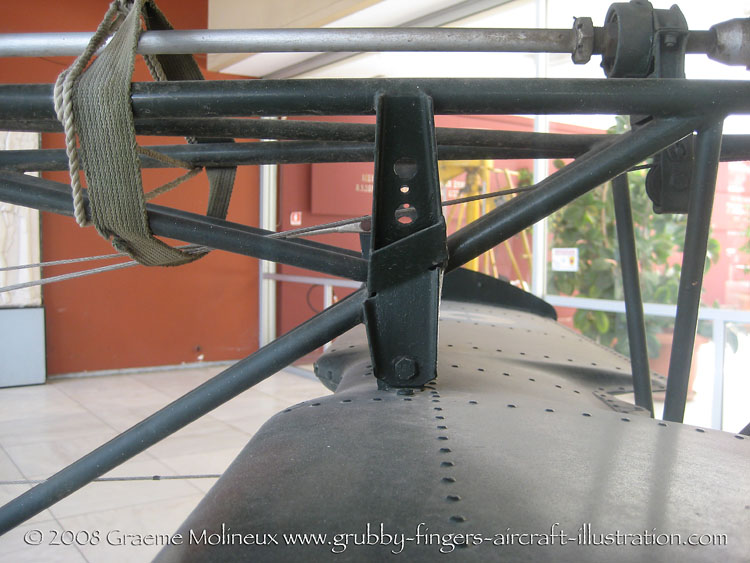

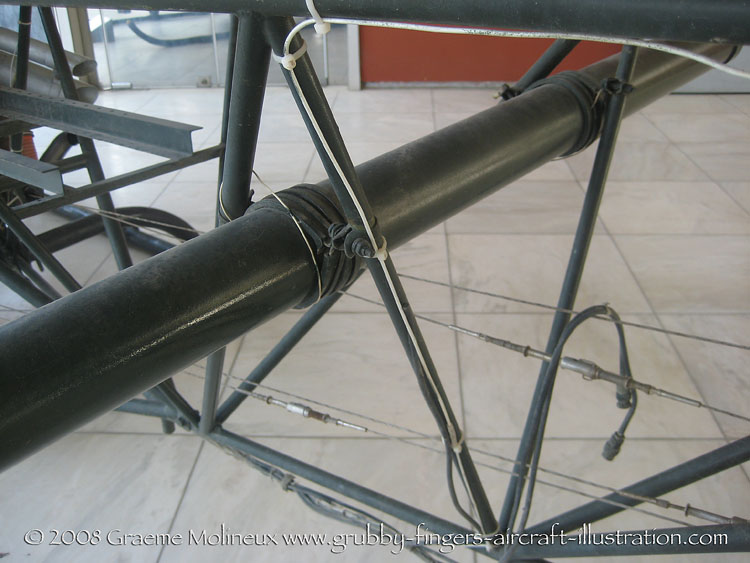

Tailplane attachment from port side |
 |  |  | Bell 47 ES-709 Pic 64

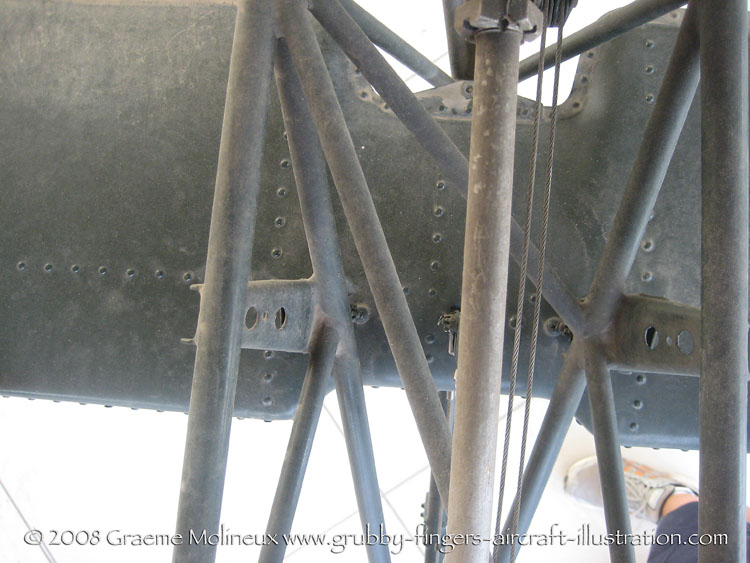

Tailplane attachment from above | Bell 47 ES-709 Pic 65

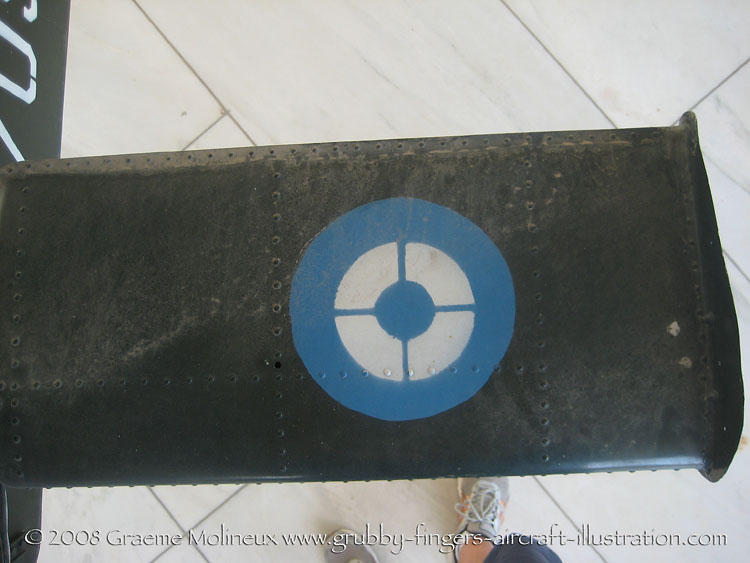

Tailplane from above | Bell 47 ES-709 Pic 66

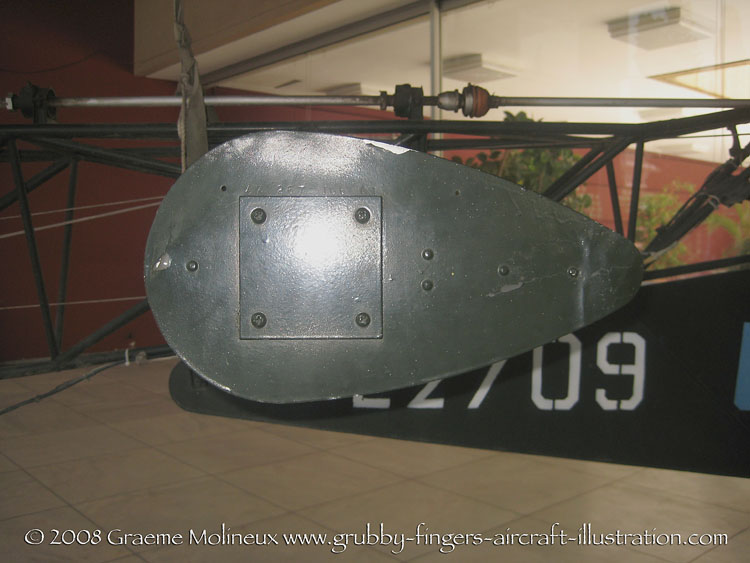

Tailplane end plate |
 |  |  | Bell 47 ES-709 Pic 67

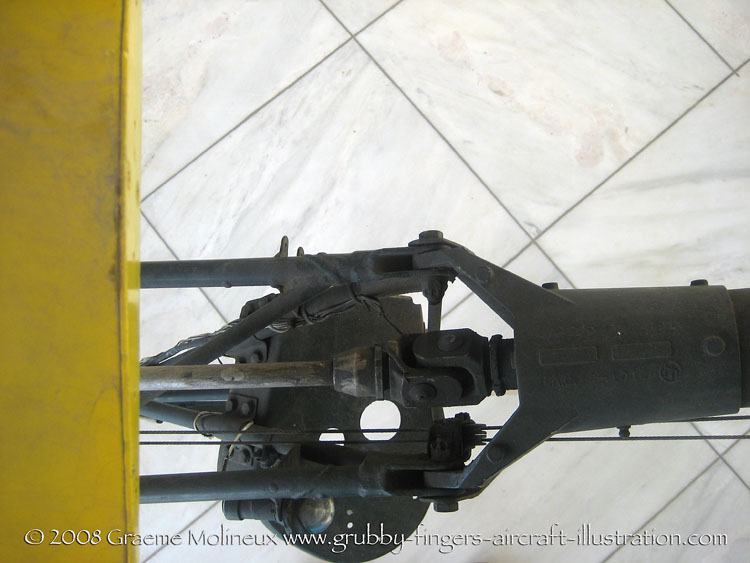

Tailrotor universal joint from above | Bell 47 ES-709 Pic 68

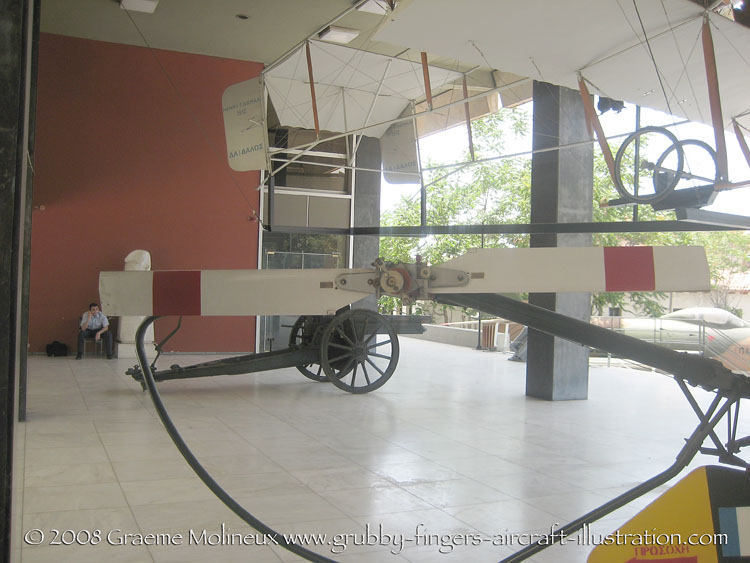

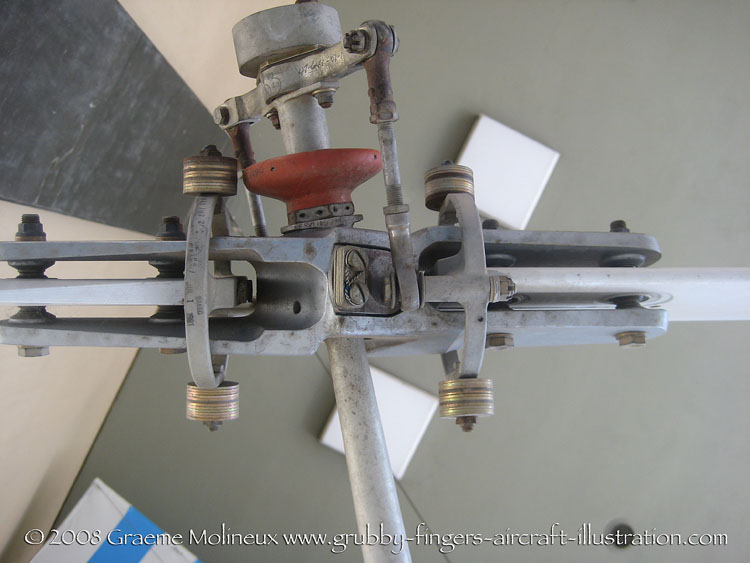

Whole tailrotor from stbd | Bell 47 ES-709 Pic 69
Tailrotor detail |
 |  |  | Bell 47 ES-709 Pic 70

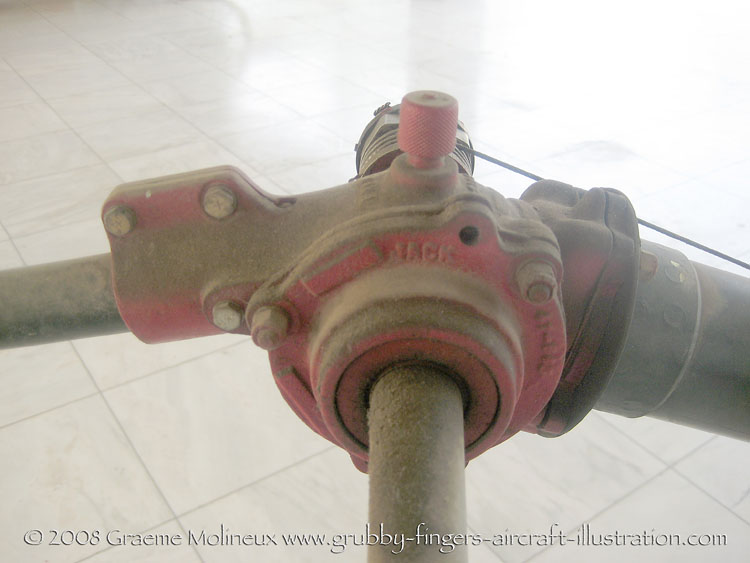

Tailrotor 90° gearbox | Bell 47 ES-709 Pic 71

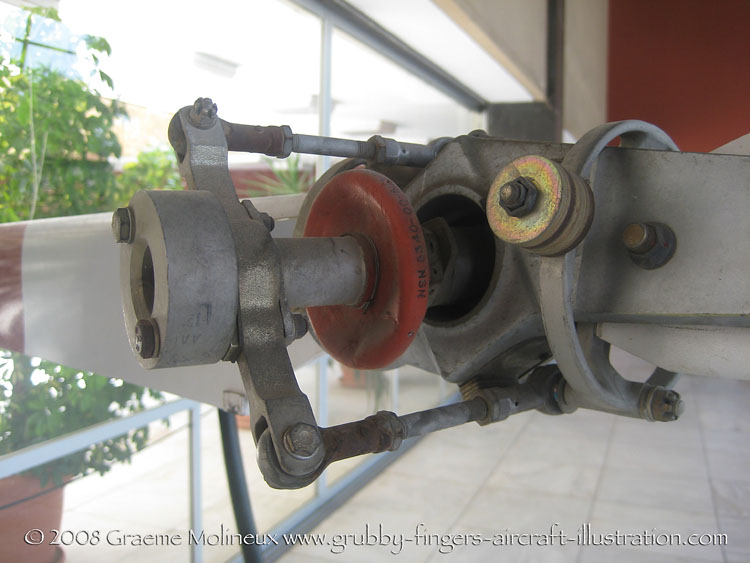

Tailrotor detail | Bell 47 ES-709 Pic 72

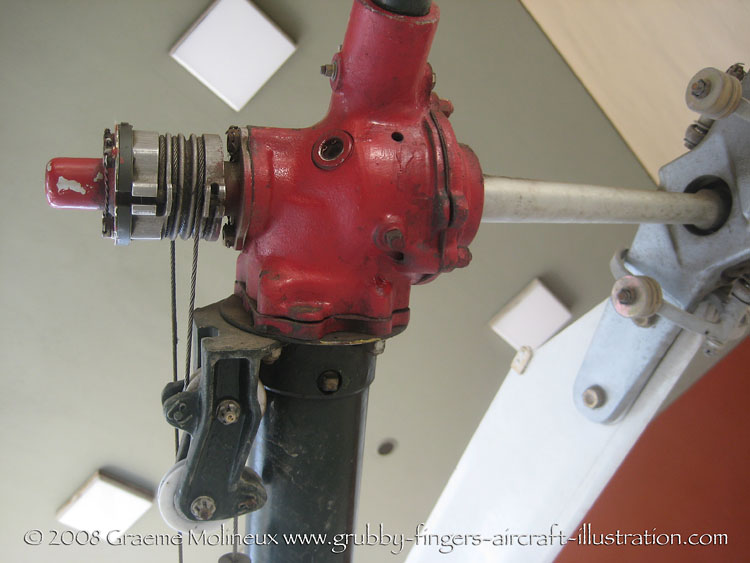

Tailrotor pitch actuator mechanism |
 |  | Bell 47 ES-709 Pic 73

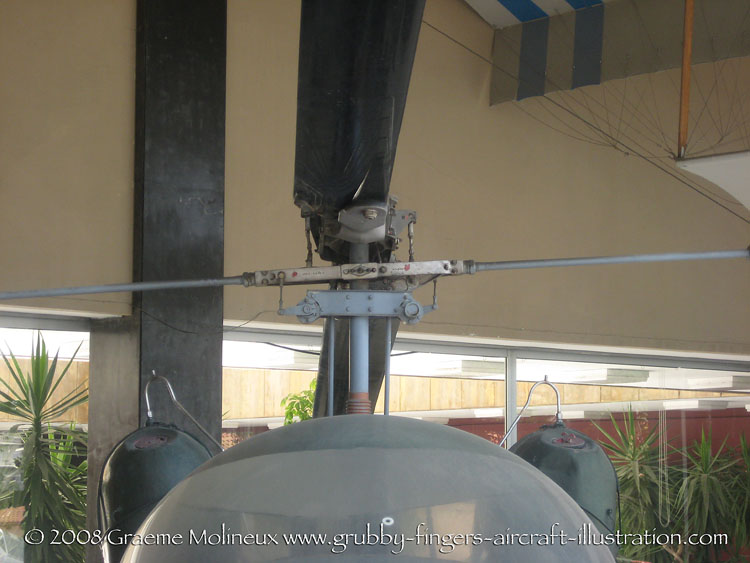

Rotor head | Bell 47 ES-709 Pic 74

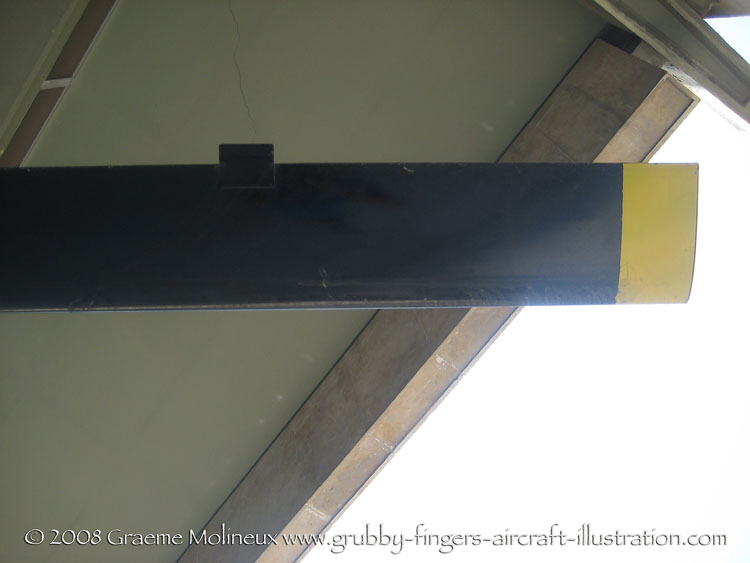

Main rotor tip and trim tabt |
