Bell UH-1B A2-384 Walkaround Gallery
Another UH-1B on display at Point Cook is A2-384. This airframe has the distinction of being not only the first Iroquois delivered to the RAAF, but the last UH-1B to be taken off RAAF duties. It was first delivered in October 1962, and it was retired from service and handed over to the museum in June 1985, after 23 years’ service.
This is my favorite Huey colour scheme. I grew up in Canberra with Iroquois’ in this scheme wockering around all the time.
These shots were taken from the public gallery, so access was fairly limited. I am hoping to get some shots of the starboard side in early 2008 when I shoot their new UH-1H, A2-377. Watch this space…
 |  |  | UH-1B_A2-384
Tail “stinger”. Note the aerial attachment. | UH-1B_A2-384

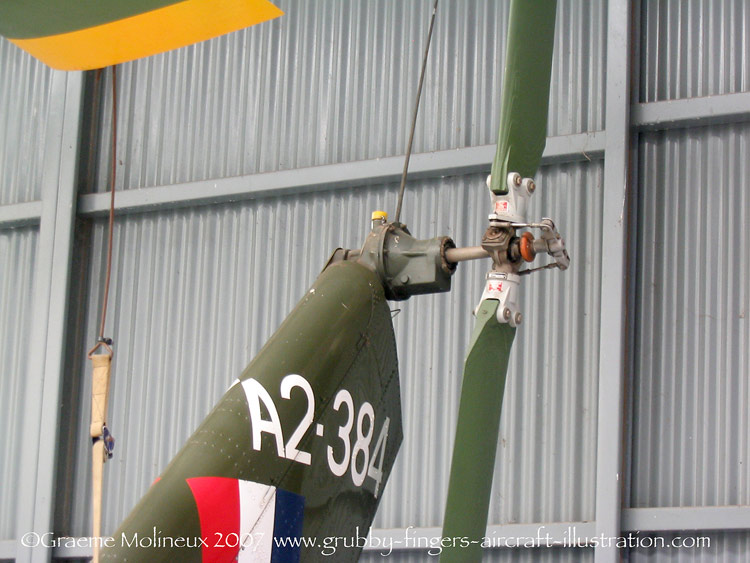

Tail rotor detail. | UH-1B_A2-384

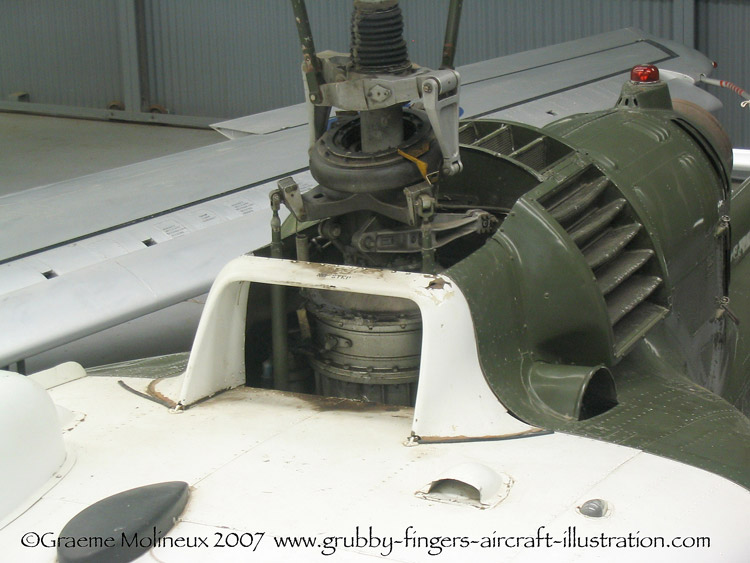

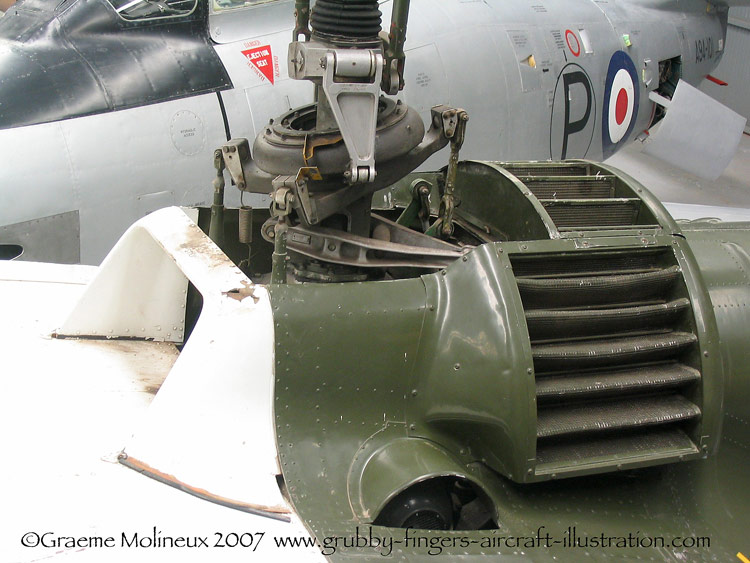

Transmission and rotor control detail. |
 |  |  | UH-1B A2-384
Overall front view. | UH-1B A2-384

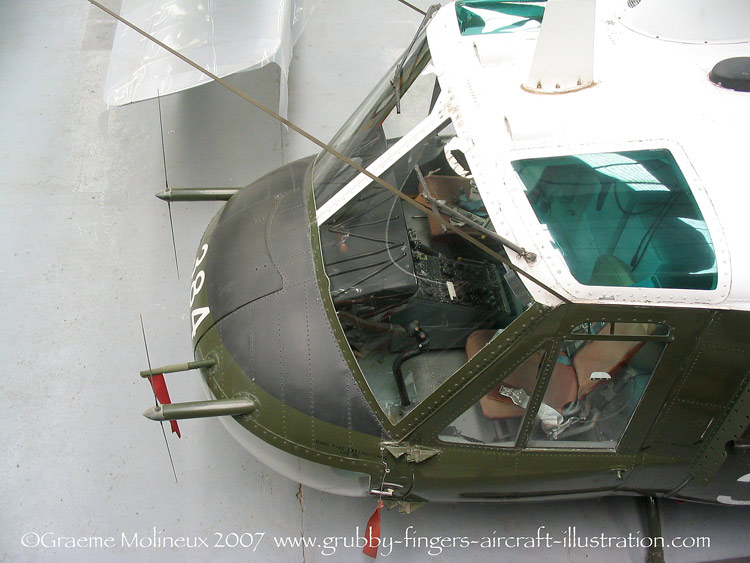

Note the interior colours and the wear patterns on the floor. | UH-1B A2-384

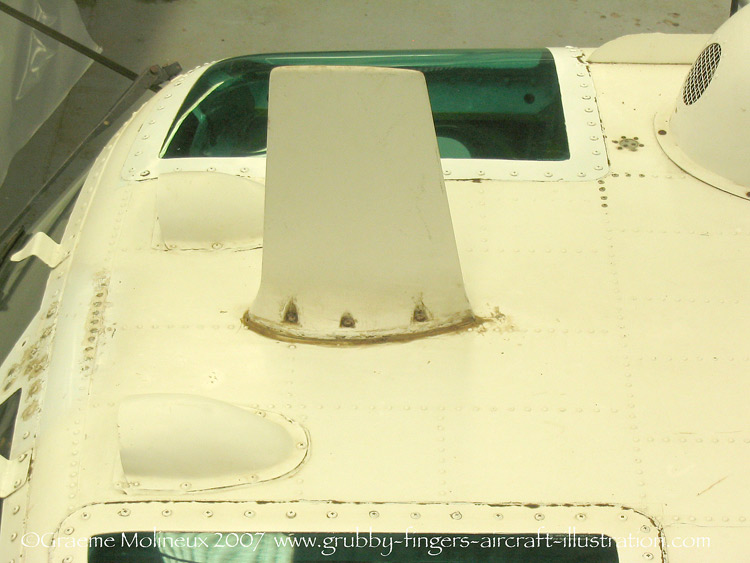

Roof aerial. |
 |  |  | UH-1B A2-384
Main rotor detail. Note the pale blue colour. | UH-1B A2-384

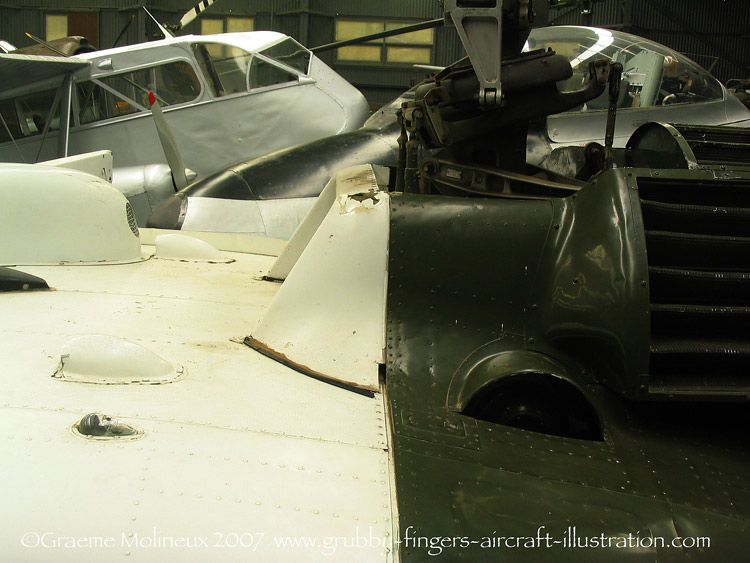

Mid roof detail. | UH-1B A2-384
Pic 9 |
 |  |  | UH-1B A2-384

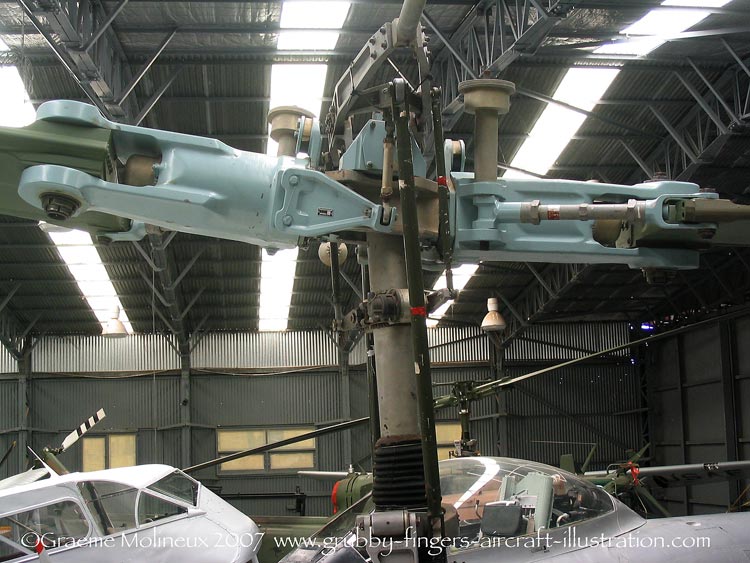

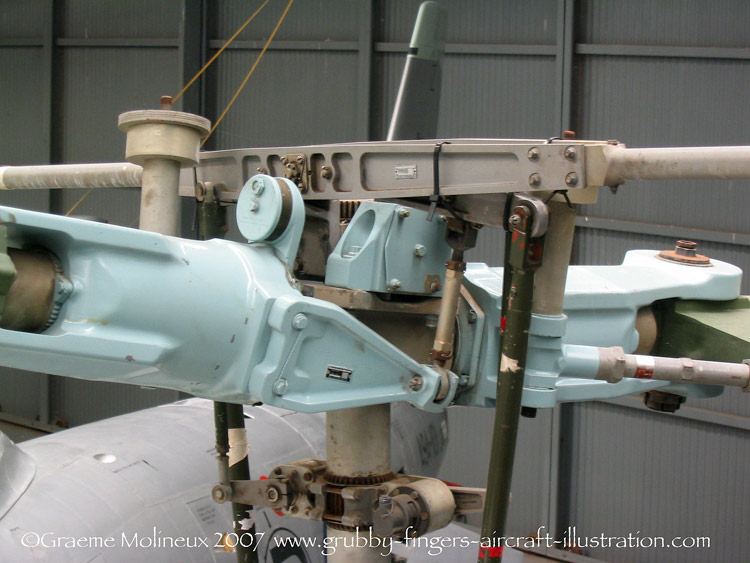

Rotor head detail. | UH-1B A2-384

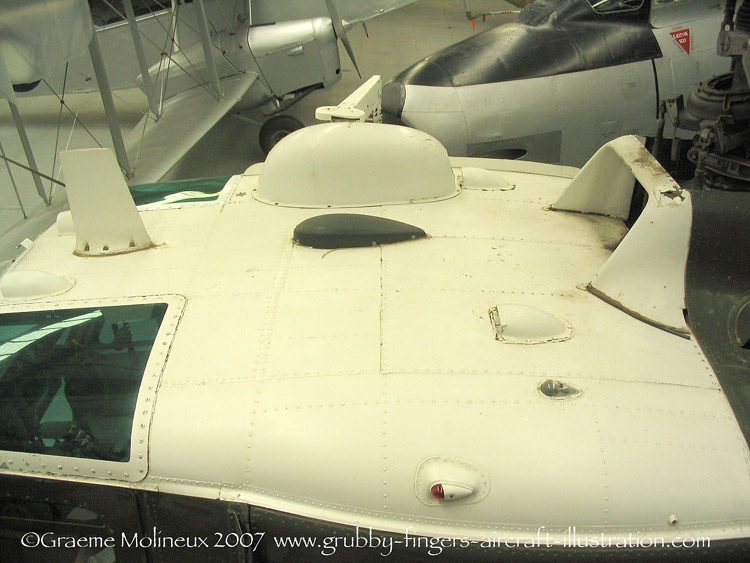

Roof detail. | UH-1B A2-384
Air filter fitting. |
 |  |  | UH-1B A2-384

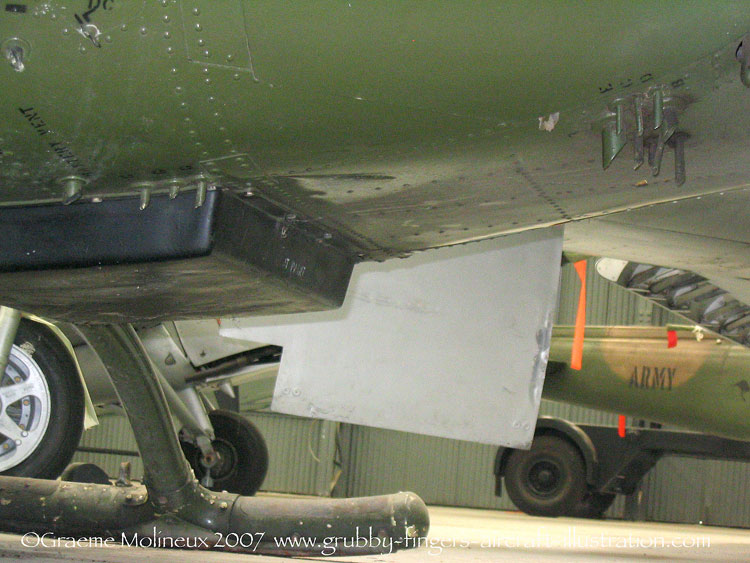

Mystery Tupperware box under rear fuselage. | UH-1B A2-384

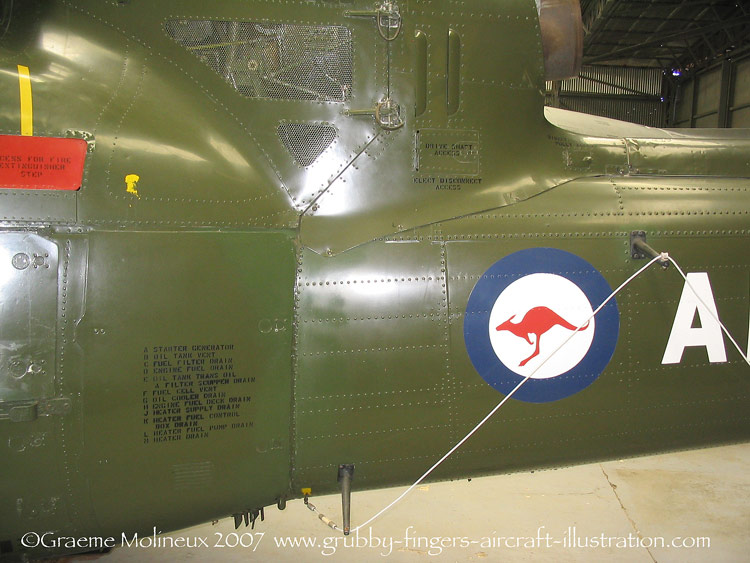

Rear fuselage, tail boom and engine fairing detail. | UH-1B A2-384

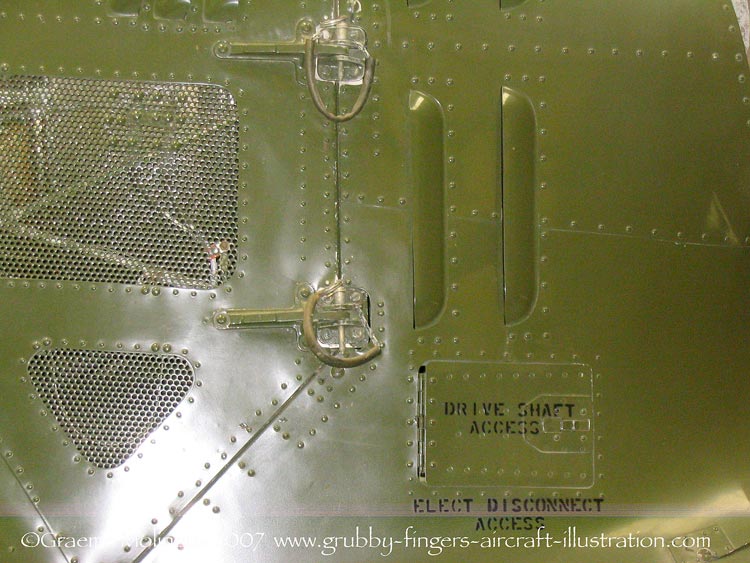

Close-up of the engine cover catches. |
 |  |  | UH-1B A2-384

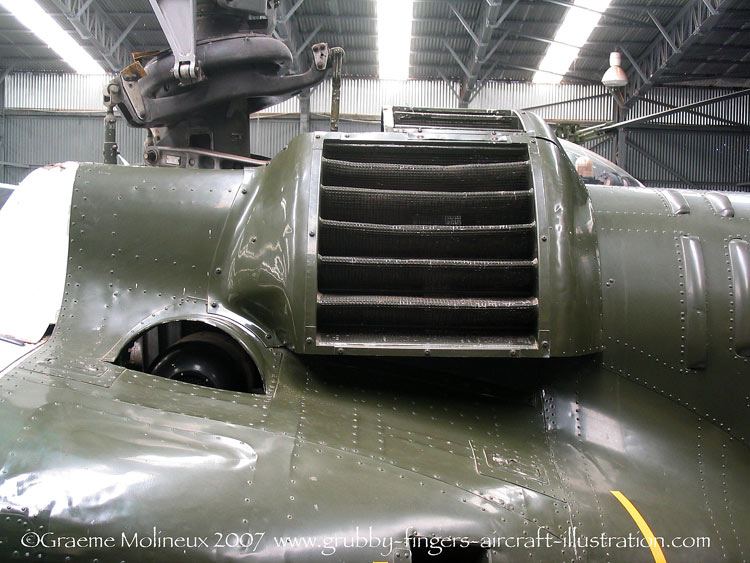

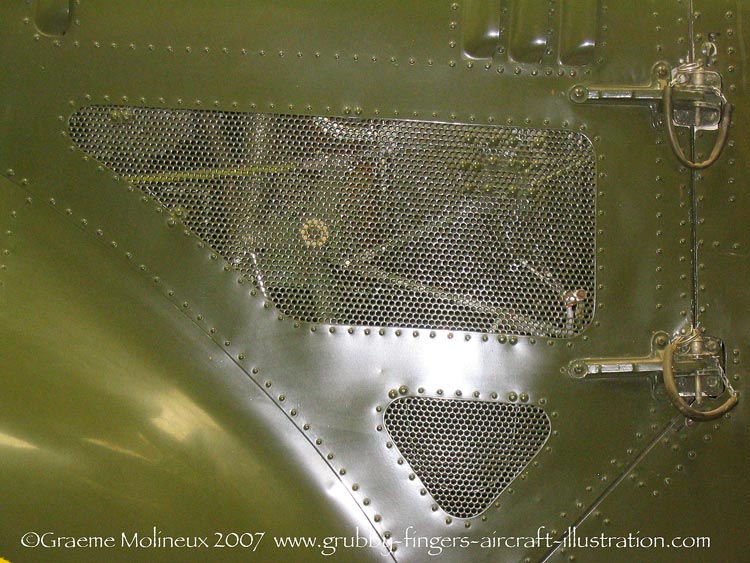

Engine screens. | UH-1B A2-384
Boom aerial mounts. | UH-1B A2-384
Tail boom. |
 |  |  | UH-1B A2-384

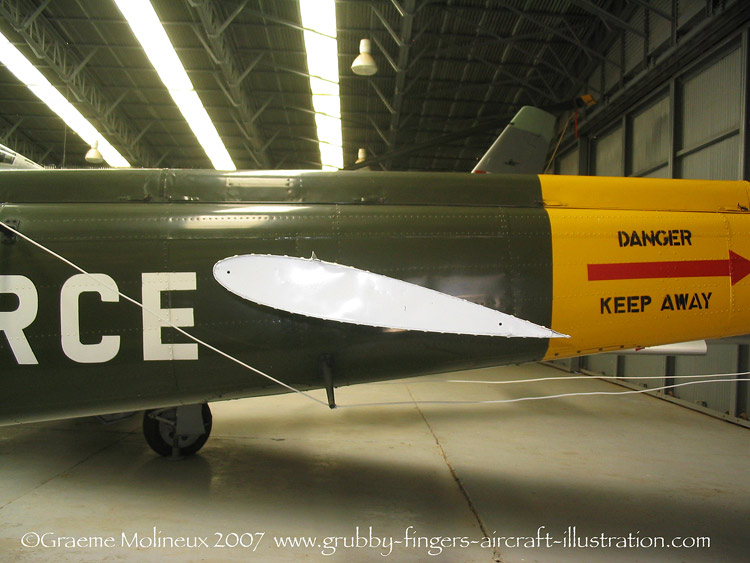

Bravo type narrow chord symetrical stabilator. | UH-1B A2-384

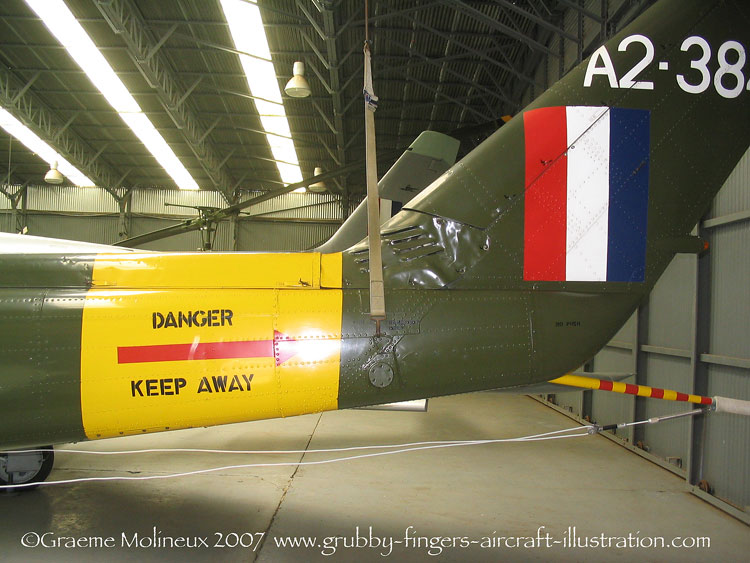

Boom and fin detail. | UH-1B A2-384
Narrow chord Bravo tail fin. |
|
